Front brake / brake disc for BMW 5 Series E60 LCI 525xi (2009)

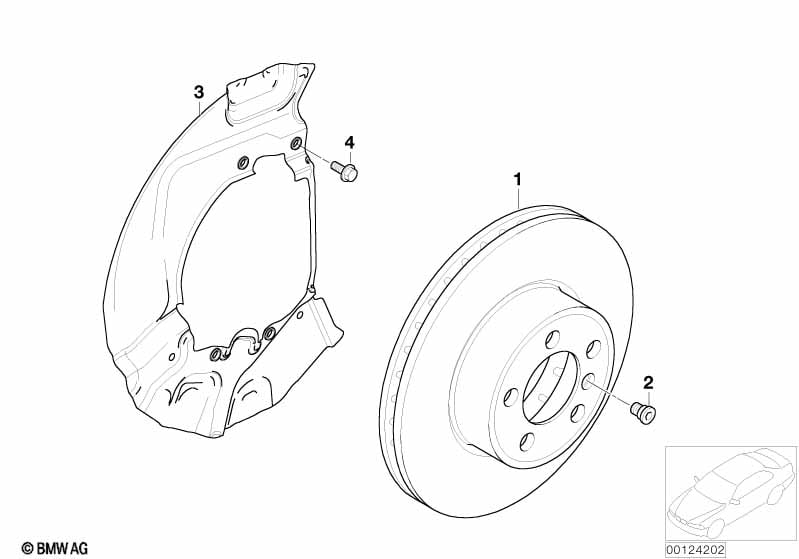

This Front brake / brake disc technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake disc, ventilated | 324X30 | 2 | 34116864906 | Shop at ECS Tuning | |||||
| The following additional parts are essential, mandatory requirements: - brake pads - brake pad sensor - brake pad paste The following recommendation applies to vehicles more than 48 months old: - Replace retaining spring refer to Repair Manual! |
||||||||||
| For vehicles with Usable load increase or Chassis, officials utility vehicle |
S100A=Yes S102A=Yes |
|||||||||
| 01 | Brake disc, ventilated | 324X30 | 2 | 34116864905 | Shop at ECS Tuning | |||||
| The following additional parts are essential, mandatory requirements: - brake pads - brake pad sensor - brake pad paste The following recommendation applies to vehicles more than 48 months old: - Replace retaining spring refer to Repair Manual! |
||||||||||
| 02 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 03 | Protection plate left | 1 | 34116767785 | $36.27 | Shop at ECS Tuning | |||||
| 03 | Protection plate right | 1 | 34116767786 | $36.27 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X12-10.9-MK- | 8 | 34116868785 | Shop at ECS Tuning | |||||
