Power brake unit depression for BMW 5 Series E61 535d (2007)

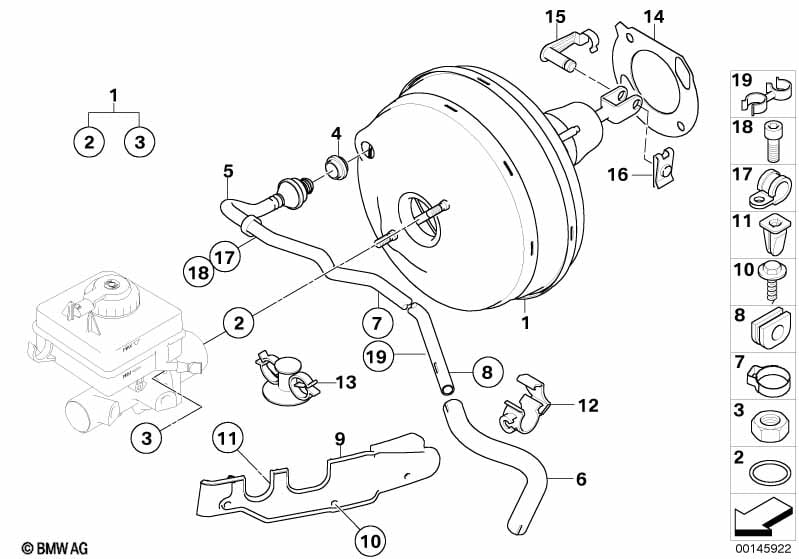

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | 1 | 34336779742 | $588.00 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Seal, brake booster | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | Brake master cylinder o-ring | 1 | 34311159007 | $3.15 | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | 1 | 34331158929 | $3.15 | Shop at ECS Tuning | |||||
| 05 | Vacuum pipe | 1 | 34336766294 | +core | Shop at ECS Tuning | |||||
| 07 | Hose clamp | 21,3MM | 1 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Bulkhead seal | 1 | 34306760912 | Shop at ECS Tuning | ||||||
| 10 | Sheet metal screw with washer | ST 4,8X19 | 3 | 07119904263 | $0.29 | Shop at ECS Tuning | ||||
| 11 | Expanding nut | ST 4.8 WEISS | 3 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 13 | Cable holder | 2 | 12521712900 | $0.68 | Shop at ECS Tuning | |||||
| 14 | Seal, brake booster | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| 15 | Secuirng pin | D=10X29,5/PBX | 1 | 35216753830 | $2.68 | Shop at ECS Tuning | ||||
| 16 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 17 | Clamp | D=13/6,4 | 1 | 12427840405 | $1.52 | Shop at ECS Tuning | ||||
| 18 | Hex nut | 1 | 07129906887 | $0.56 | Shop at ECS Tuning | |||||
| 19 | Clip | D=10/D=11 | 1 | 34337801414 | $1.49 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 535d Power brake unit depression?
- This technical diagram illustrates the Power brake unit depression within the Brakes group for the 5 Series E61 535d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34336779742).
- Which models use the hardware listed in this Power brake unit depression?
- The hardware and components featured in the Power brake unit depression are specific to the 5 Series E61 535d produced during 2007. These technical specifications ensure that parts like the Power brake (34336779742) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power brake unit depression assembly?
- Each item in the Power brake unit depression corresponds to the numbered list below the illustration. For the 5 Series E61 535d, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34336779742 for the Brakes section.
