Front brake pipe / mounting for BMW 5 Series E60 530i (2004)

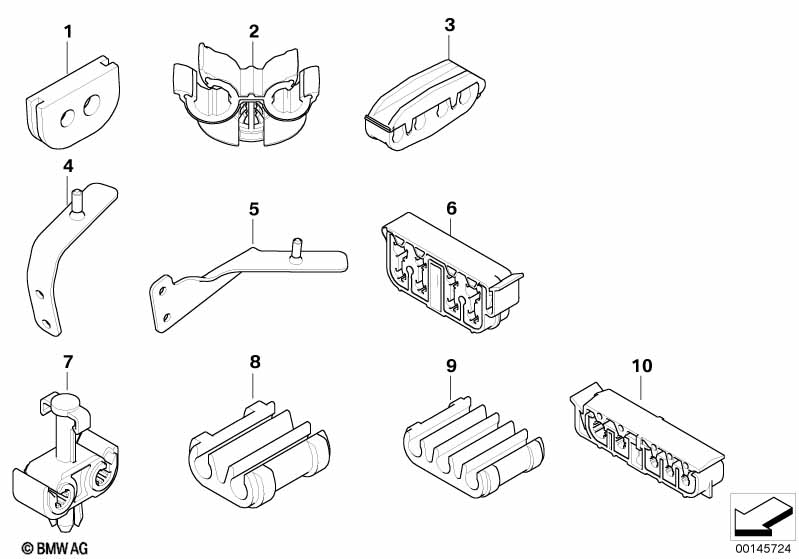

This Front brake pipe / mounting technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rubber grommet | 1 | 34306759190 | $3.75 | Shop at ECS Tuning | |||||
| 02 | Brake pipe bracket | 2 | 34326759039 | $0.87 | Shop at ECS Tuning | |||||
| 03 | Spacer, 4-way | 2 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 04 | Brake pipe bracket | 1 | 34306760245 | $3.72 | Shop at ECS Tuning | |||||
| 06 | Bracket, brake line 8-fold | 1 | 34326758871 | $2.02 | Shop at ECS Tuning | |||||
| 07 | Brake pipe bracket | 1 | 34321165922 | $1.88 | Shop at ECS Tuning | |||||
| 08 | Spacer holder | 1 | 34321107991 | $1.02 | Shop at ECS Tuning | |||||
| 09 | Brake pipe bracket | 2 | 34321107992 | $1.02 | Shop at ECS Tuning | |||||
| 10 | Bracket, brake pipe, 5-fold | 1 | 34306771401 | $2.45 | Shop at ECS Tuning |
