Hydro unit DSC/fastening/sensors for BMW 6 Series E64 650i (2007)

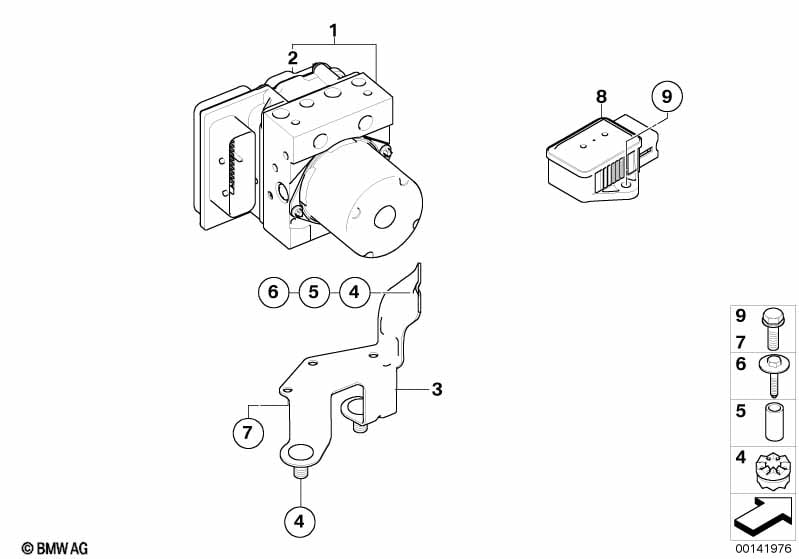

This Hydro unit DSC/fastening/sensors technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit DSC | 1 | 09/2005 | 34516791108 | $2722.62 | Shop at ECS Tuning | ||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 01 | Hydro unit DSC | 1 | 09/2005 | 34516777802 | $2643.70 | ENDED | Shop at ECS Tuning | |||
| 02 | Repair kit, control unit DSC | 1 | 09/2005 | 34526791110 | $1264.82 | Shop at ECS Tuning | ||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 02 | Repair kit, control unit DSC | 1 | 09/2005 | 34526777804 | $1264.82 | Shop at ECS Tuning | ||||
| 03 | Bracket hydro unit | 1 | 34516758746 | $9.65 | Shop at ECS Tuning | |||||
| 04 | Rubber Mounting | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Active steering |
S217A=No |
|||||||||
| 08 | Speed sensor | 1 | 09/2005 | 34526782370 | $556.54 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
