Front wheel brake disc perforated for BMW 3 Series E46 330Ci (2003)

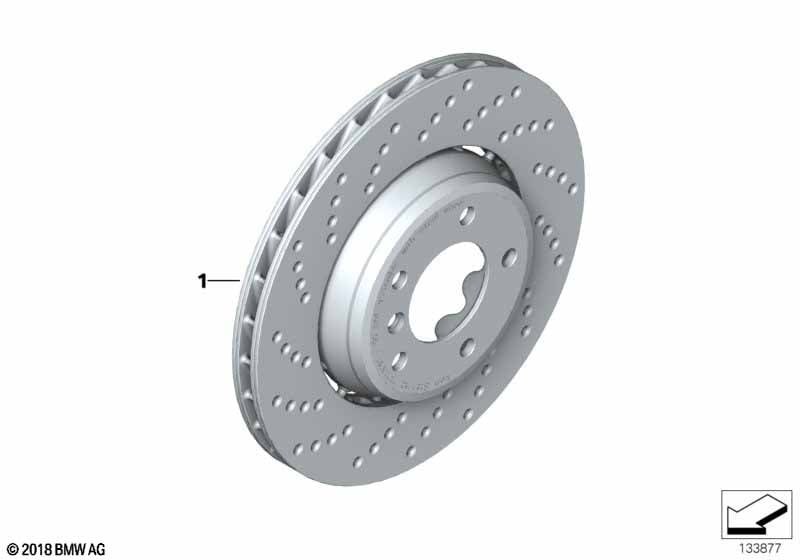

This Front wheel brake disc perforated technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Other parts as standard, see main group 34 |
|||||||||
| not suitable for steel wheel | ||||||||||
| 01 | Brake disc, ventilated, perforated, left | 325X25 | 1 | 34112282871 | $331.95 | Shop at ECS Tuning | ||||
| 01 | Brake disc ventilated, perforated, right | 325X25 | 1 | 34112282872 | $331.95 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci Front wheel brake disc perforated?
- This technical diagram illustrates the Front wheel brake disc perforated within the Brakes group for the 3 Series E46 330Ci produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Brake disc, ventilated, perforated, left (Part #34112282871).
- Which models use the hardware listed in this Front wheel brake disc perforated?
- The hardware and components featured in the Front wheel brake disc perforated are specific to the 3 Series E46 330Ci produced during 2003. These technical specifications ensure that parts like the Brake disc, ventilated, perforated, left (34112282871) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front wheel brake disc perforated assembly?
- Each item in the Front wheel brake disc perforated corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Brake disc, ventilated, perforated, left by locating its position on the schematic, which then links to the official BMW part number 34112282871 for the Brakes section.
