Handbrake lever for BMW 1 Series E82 120d (2013)

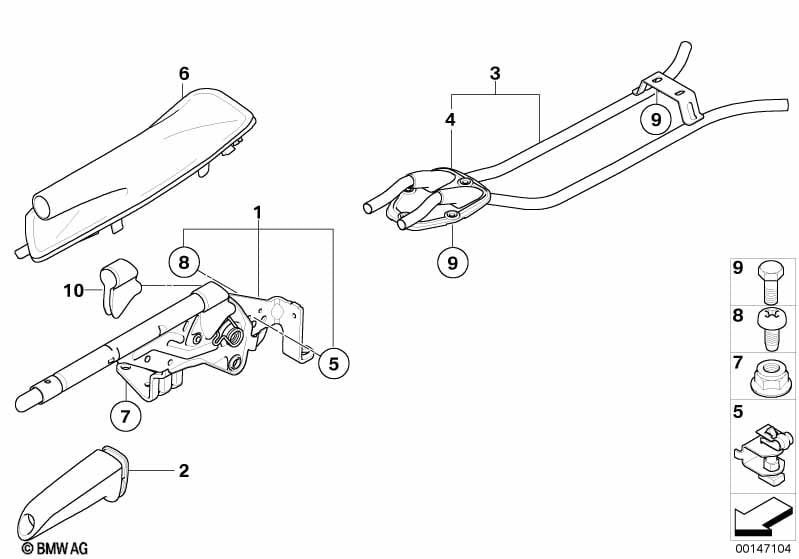

This Handbrake lever technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Handbrake lever | 1 | 34406782749 | $74.36 | Shop at ECS Tuning | |||||
| 02 | Handbrake handle | 1 | 34408036495 | $36.03 | +core | Shop at ECS Tuning | ||||
| For vehicles with Sports Edition |
P7MFA=Yes |
|||||||||
| 02 | Handbrake handle | SCHWARZ | 1 | 34402284018 | $34.62 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition |
P7MCA=Yes |
|||||||||
| 02 | Handbrake grip with chrome inlay | 1 | 34400404523 | $66.00 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with M Sports package or M leather steering wheel |
P337A=Yes S710A=Yes |
|||||||||
| 02 | Handbrake handle | 1 | 34408036495 | $36.03 | +core | Shop at ECS Tuning | ||||
| 03 | Guide tube | 1 | 34406768398 | $30.50 | Shop at ECS Tuning | |||||
| 04 | Gasket | 1 | 34406764925 | $3.43 | Shop at ECS Tuning | |||||
| 05 | Switch hand brake control | 1 | 61316928205 | $14.76 | Shop at ECS Tuning | |||||
| 06 | Handbrake lever cover | SCHWARZ | 1 | 34429142749 | $84.54 | Shop at ECS Tuning | ||||
| 06 | Handbrake lever cover | GRAU | 1 | 34429142750 | $84.54 | Shop at ECS Tuning | ||||
| 06 | Handbrake lever cover | BEIGE | 1 | 34429142751 | $84.54 | Shop at ECS Tuning | ||||
| For vehicles with Limited Edition Lifestyle or M leather steering wheel or M Leathr. wheel+shift paddle+multifunc. |
P7L1A=Yes S710A=Yes S7XAA=Yes |
|||||||||
| 06 | Handbrake lever cover | SCHWARZ | 1 | 03/2013 | 34429297298 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Screw | M4 | 1 | 34406765685 | $0.73 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X12.4MM ZNS3 | 6 | 07146954299 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Covering cap | 1 | 34406764924 | $2.08 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
