Front brake pipe / mounting for BMW 5 Series E60 535d (2007)
This Front brake pipe / mounting technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake pipe bracket | 2 | 16111184823 | $3.23 | Shop at ECS Tuning | |||||
| 02 | Spacer, 4-way | 2 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 04 | Rubber grommet | 1 | 34306758986 | $3.75 | Shop at ECS Tuning | |||||
| 05 | Brake pipe bracket | 2 | 34326759037 | $0.95 | Shop at ECS Tuning | |||||
| 06 | Rubber grommet | 1 | 34326760848 | $4.03 | Shop at ECS Tuning | |||||
| 07 | Rubber grommet | 1 | 34306759190 | $3.75 | Shop at ECS Tuning | |||||
| 08 | Brake pipe bracket | 2 | 34326759039 | $0.87 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 535d Front brake pipe / mounting?

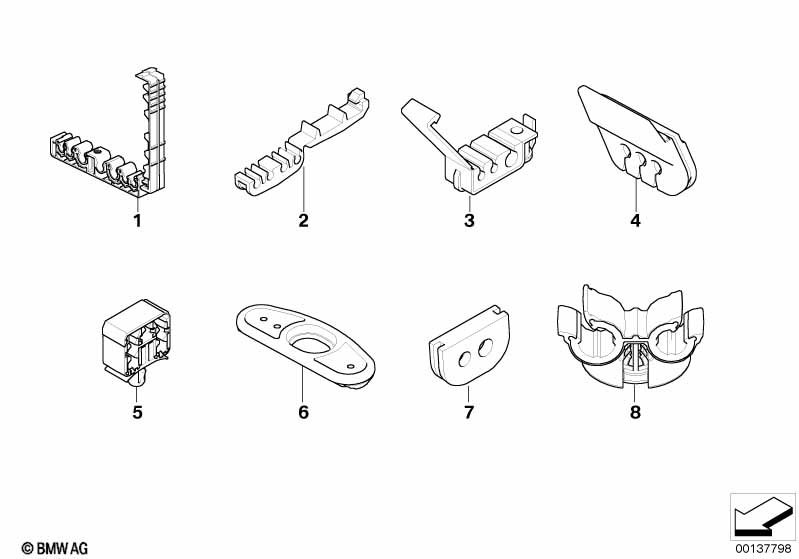

- This technical diagram illustrates the Front brake pipe / mounting within the Brakes group for the 5 Series E60 535d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Brake pipe bracket (Part #16111184823).
- Which models use the hardware listed in this Front brake pipe / mounting?
- The hardware and components featured in the Front brake pipe / mounting are specific to the 5 Series E60 535d produced during 2007. These technical specifications ensure that parts like the Brake pipe bracket (16111184823) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front brake pipe / mounting assembly?
- Each item in the Front brake pipe / mounting corresponds to the numbered list below the illustration. For the 5 Series E60 535d, you can identify the Brake pipe bracket by locating its position on the schematic, which then links to the official BMW part number 16111184823 for the Brakes section.
