Hydro unit DSC/fastening/sensors for BMW 5 Series E61 525xi (2007)

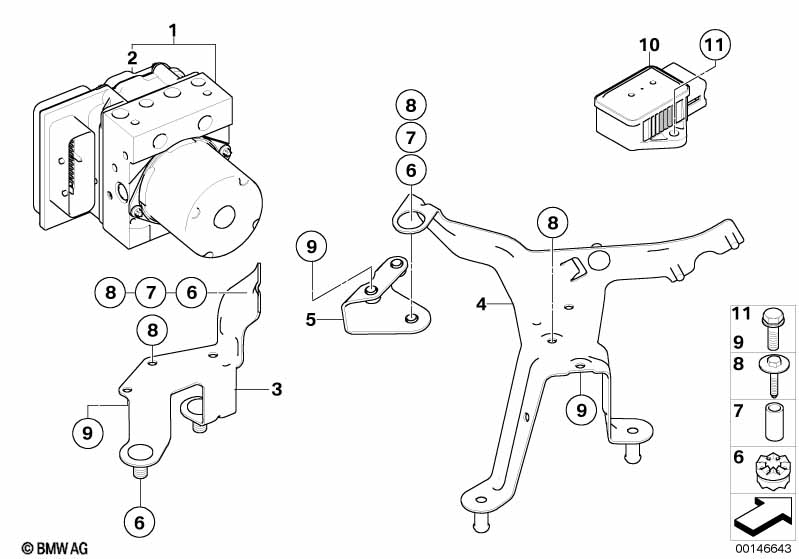

This Hydro unit DSC/fastening/sensors technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit DXC | 1 | 34516777879 | $2643.70 | ENDED | Shop at ECS Tuning | ||||
| 02 | Repair kit, control unit DXC | 1 | 34526777881 | $1264.82 | Shop at ECS Tuning | |||||
| 03 | Bracket hydro unit | 1 | 34516758746 | $9.65 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 07 | Spacer sleeve | ZNS3 | 3 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X12-U1-8.8 | 3 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Speed sensor | 1 | 09/2005 | 34526782370 | $556.54 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
