Front brake pipe ASC for BMW 5 Series E39 540i (2003)

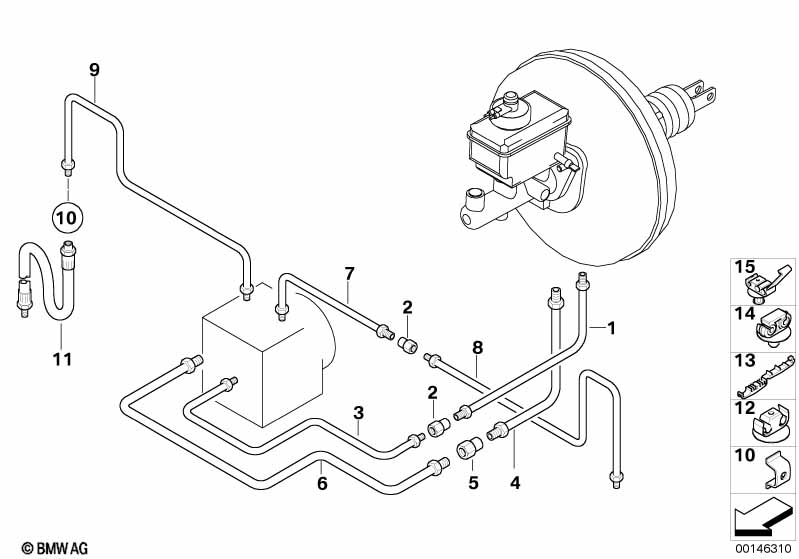

This Front brake pipe ASC technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe rubber covered | M10/M10 | 1 | 09/1998 | 34326755295 | $12.05 | Shop at ECS Tuning | |||
| 02 | Intermediate piece | M10X1 | 2 | 09/1998 | 34326757282 | $4.08 | Shop at ECS Tuning | |||
| 03 | Pipe rubber covered | M10/M10 | 1 | 09/1998 | 34326755297 | $25.60 | Shop at ECS Tuning | |||
| 04 | Pipe rubber covered | M12/M12 | 1 | 09/1998 | 34326755299 | $25.02 | Shop at ECS Tuning | |||
| 05 | Intermediate piece | M12X1 | 1 | 09/1998 | 34326757285 | $4.08 | Shop at ECS Tuning | |||
| 06 | Pipe rubber covered | M12/M12 | 1 | 09/1998 | 34326755301 | $25.60 | Shop at ECS Tuning | |||
| 07 | Pipe | M10/M12-1893MM | 1 | 09/1998 | 34326755304 | $10.03 | ENDED | Shop at ECS Tuning | ||
| 08 | Pipe | M10/M10-448MM | 1 | 09/1998 | 34326755306 | $5.83 | Shop at ECS Tuning | |||
| 09 | Pipe | M10/M12-963MM | 1 | 09/1998 | 34326755308 | $10.03 | Shop at ECS Tuning | |||
| 10 | Clip | 2 | 09/1998 | 34341163565 | $0.97 | Shop at ECS Tuning | ||||
| 11 | Brake hose front | 2 | 09/1998 | 34301165249 | $58.31 | Shop at ECS Tuning | ||||
| 12 | Brake pipe bracket | 1 | 09/1998 | 34321160027 | $0.80 | Shop at ECS Tuning | ||||
| 13 | Brake pipe bracket | 6-FACH | 1 | 09/1998 | 34321162454 | $1.53 | Shop at ECS Tuning | |||
| 14 | Brake pipe bracket | 1 | 09/1998 | 34301161568 | $1.48 | Shop at ECS Tuning | ||||
| 15 | Brake pipe bracket | 3 | 09/1998 | 34321161701 | $2.30 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 540i Front brake pipe ASC?
- This technical diagram illustrates the Front brake pipe ASC within the Brakes group for the 5 Series E39 540i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Pipe rubber covered (Part #34326755295).
- Which models use the hardware listed in this Front brake pipe ASC?
- The hardware and components featured in the Front brake pipe ASC are specific to the 5 Series E39 540i produced during 2003. These technical specifications ensure that parts like the Pipe rubber covered (34326755295) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front brake pipe ASC assembly?
- Each item in the Front brake pipe ASC corresponds to the numbered list below the illustration. For the 5 Series E39 540i, you can identify the Pipe rubber covered by locating its position on the schematic, which then links to the official BMW part number 34326755295 for the Brakes section.
