Front brake pad wear sensor for BMW 5 Series E60 550i (2007)

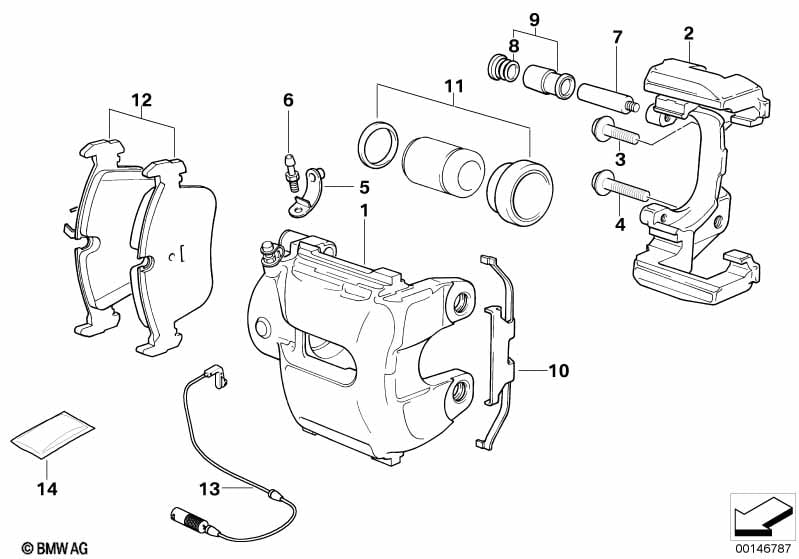

This Front brake pad wear sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Safety vehicle |
S106A=Yes |
||||||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 01 | Caliper housing left | 1 | 34116768067 | $552.78 | Shop at ECS Tuning | |||||
| 01 | Caliper housing right | 1 | 34116768068 | $552.78 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 01 | Caliper housing left | 1 | 34116768067 | $552.78 | Shop at ECS Tuning | |||||
| 01 | Caliper housing right | 1 | 34116768068 | $552.78 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 02 | Calliper carrier | 2 | 34116768066 | $274.15 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 02 | Calliper carrier | 2 | 34116768066 | $274.15 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 03 | Torx screw with washer | M12X1,5X43 ZNS3 | 2 | 34106864424 | Shop at ECS Tuning | |||||
| Note: Install on both sides | ||||||||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 03 | Torx screw with washer | M12X1,5X43 ZNS3 | 2 | 34106864424 | Shop at ECS Tuning | |||||
| Note: Install on both sides | ||||||||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 04 | Hex bolt | M12X1,5X63 ZNS3 | 2 | 34116772429 | $3.67 | Shop at ECS Tuning | ||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 04 | Hex bolt | M12X1,5X63 ZNS3 | 2 | 34116772429 | $3.67 | Shop at ECS Tuning | ||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 05 | Dust cap | 2 | 34111163435 | $4.20 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 05 | Dust cap | 2 | 34111163435 | $4.20 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 06 | Ventilation valve | M10X1 | 2 | 34116768018 | $6.60 | Shop at ECS Tuning | ||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 06 | Ventilation valve | M10X1 | 2 | 34116768018 | $6.60 | Shop at ECS Tuning | ||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 07 | Guiding bolt | 4 | 34116757036 | $21.50 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 07 | Guiding bolt | 4 | 34116757036 | $21.50 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 08 | Protective plug | 4 | 34111154979 | $1.80 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 08 | Protective plug | 4 | 34111154979 | $1.80 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 09 | Repair kit guide bush | 2 | 34116759165 | $25.37 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 09 | Repair kit guide bush | 2 | 34116759165 | $25.37 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 10 | Clip | 2 | 34116761793 | $33.30 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 10 | Clip | 2 | 34116761793 | $33.30 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 11 | Repair set brake caliper | 1 | 34116763995 | $39.47 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 11 | Repair set brake caliper | 1 | 34116763995 | $39.47 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 12 | Repair kit, brake pads asbestos-free | 1 | 34116774258 | $294.37 | Shop at ECS Tuning | |||||
| The following additional parts are also essential: - brake pad sensor - brake pad paste The following recommendation applies to vehicles more than 48 months old: - Replace retaining spring refer to Repair Manual! |
||||||||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 12 | Repair kit, brake pads asbestos-free | 1 | 34116774258 | $294.37 | Shop at ECS Tuning | |||||
| The following additional parts are also essential: - brake pad sensor - brake pad paste The following recommendation applies to vehicles more than 48 months old: - Replace retaining spring refer to Repair Manual! |
||||||||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 13 | Brake pad wear sensor, front left | 1 | 34356789492 | $27.76 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 13 | Brake pad wear sensor, front left | 1 | 34356789492 | $27.76 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle |
S106A=Yes |
|||||||||
| 14 | Brake pad paste | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
| For vehicles with Safety vehicle and Equipment, brake syst. country-specific |
S106A=Yes S212A=Yes |
|||||||||
| 14 | Brake pad paste | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
