Brake pipe, front for BMW MINI R56 LCI Cooper (2010)

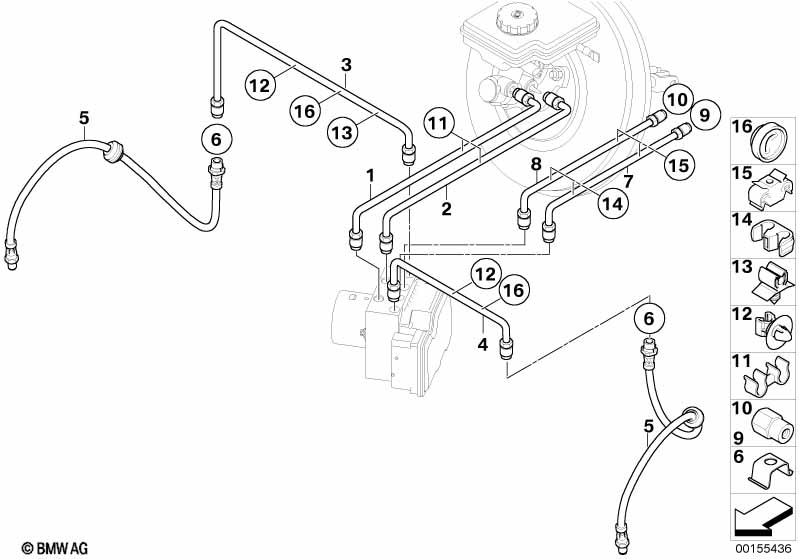

This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the MINI R56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | 1 | 34326772913 | $26.55 | Shop at ECS Tuning | |||||
| 02 | Pipe | 1 | 34326772911 | $26.55 | Shop at ECS Tuning | |||||
| 03 | Pipe | M10/M10 | 1 | 03/2010 | 34326793015 | Shop at ECS Tuning | ||||
| 04 | Pipe | M10/M12 | 1 | 34306772972 | $15.38 | Shop at ECS Tuning | ||||
| 05 | Brake hose front | 2 | 34306788442 | $39.44 | Shop at ECS Tuning | |||||
| 06 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| ATTENTION! Offered only as a separate component. Direct connection of the hydraulic unit to the brake hose! Deletion of the interconnection. |
||||||||||
| 07 | Pipe | 1 | 34306794858 | Shop at ECS Tuning | ||||||
| 08 | Pipe | 1 | 34306794860 | Shop at ECS Tuning | ||||||
| 08 | Pipe | 1 | 34306794855 | Shop at ECS Tuning | ||||||
| 09 | Not currently available as single part | 1 | 84210300309 | ENDED | Shop at ECS Tuning | |||||
| 10 | Not currently available as single part | 1 | 84210300309 | ENDED | Shop at ECS Tuning | |||||
| 11 | Spacer | 2 | 34306776833 | $0.32 | Shop at ECS Tuning | |||||
| 12 | Brake pipe bracket | 3 | 34300717868 | $0.77 | Shop at ECS Tuning | |||||
| 13 | Wire clip, single | 2 | 34306792968 | Shop at ECS Tuning | ||||||
| 14 | Spacer holder | 2 FACH | 3 | 07130519991 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Bracket, brake pipe, double | 1 | 07130565145 | $1.40 | Shop at ECS Tuning | |||||
| 16 | Rubber grommet | D=40MM | 2 | 34321154322 | $1.02 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R56 LCI Cooper Brake pipe, front?
- This technical diagram illustrates the Brake pipe, front within the Brakes group for the MINI R56 LCI Cooper produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #34326772913).
- Which models use the hardware listed in this Brake pipe, front?
- The hardware and components featured in the Brake pipe, front are specific to the MINI R56 LCI Cooper produced during 2010. These technical specifications ensure that parts like the Pipe (34326772913) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe, front assembly?
- Each item in the Brake pipe, front corresponds to the numbered list below the illustration. For the MINI R56 LCI Cooper, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 34326772913 for the Brakes section.
