Brake pipe rear for BMW MINI R56 LCI Cooper (2010)

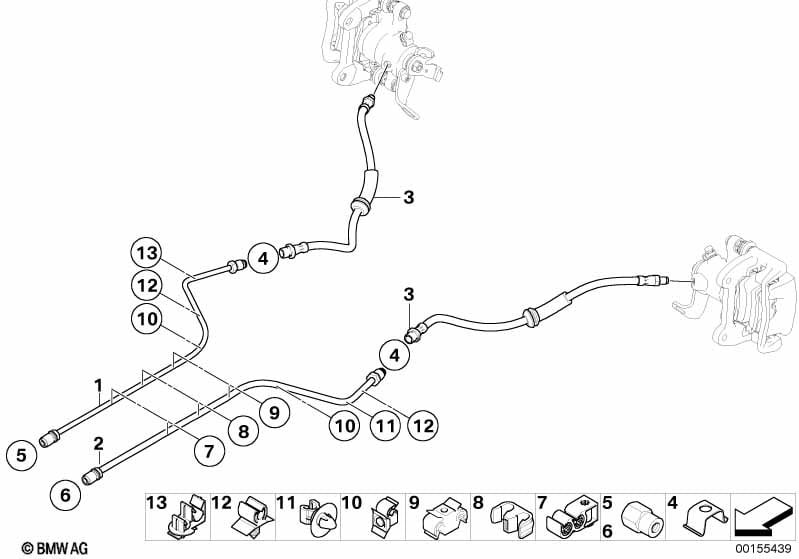

This Brake pipe rear technical drawing provides a detailed breakdown of the assembly for the MINI R56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ATTENTION! Offered only as a separate component. Direct connection of the hydraulic unit to the brake hose! Deletion of the interconnection. |
||||||||||
| 01 | Pipe | 1 | 34306794860 | Shop at ECS Tuning | ||||||
| 02 | Pipe | 1 | 34306794858 | Shop at ECS Tuning | ||||||
| 03 | Brake hose rear | 2 | 34306788443 | Shop at ECS Tuning | ||||||
| 04 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| ATTENTION! Offered only as a separate component. Direct connection of the hydraulic unit to the brake hose! Deletion of the interconnection. |
||||||||||
| 05 | Not currently available as single part | 1 | 84210300309 | ENDED | Shop at ECS Tuning | |||||
| 06 | Not currently available as single part | 1 | 84210300309 | ENDED | Shop at ECS Tuning | |||||
| 07 | Wire clip, dual | 1 | 07/2015 | 34306784201 | $1.63 | Shop at ECS Tuning | ||||
| 07 | Wire clip, dual | 1 | 34326871117 | Shop at ECS Tuning | ||||||
| 08 | Spacer holder | 2 FACH | 1 | 07130519991 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Bracket, brake pipe, double | 5 | 07130565145 | $1.40 | Shop at ECS Tuning | |||||
| 10 | Brake pipe bracket | 5 | 34306800733 | $0.77 | Shop at ECS Tuning | |||||
| 11 | Brake pipe bracket | 1 | 34300717868 | $0.77 | Shop at ECS Tuning | |||||
| 12 | Tubing support | 1 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 13 | Double clip | 1 | 16132752743 | $1.62 | Shop at ECS Tuning | |||||
