Rear wheel brake, drum brake for BMW 700LSL (1963)

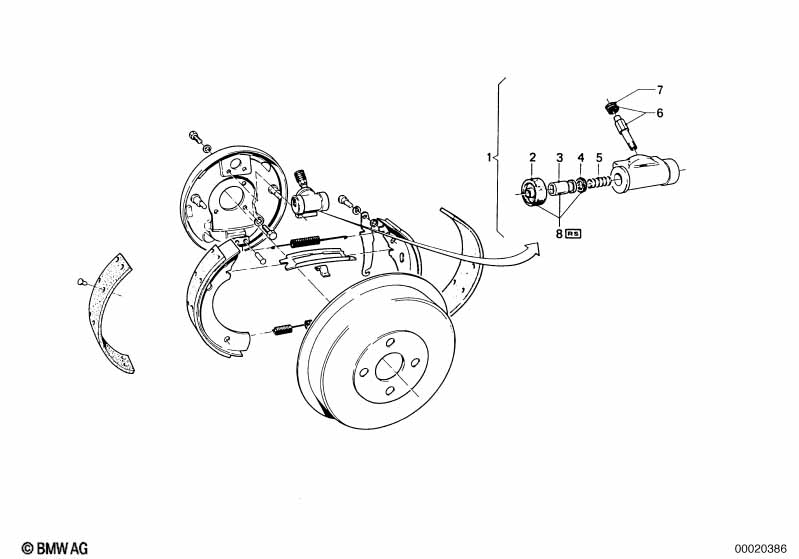

This Rear wheel brake, drum brake technical drawing provides a detailed breakdown of the assembly for the 700LSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1963.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel brake cylinder | D=15,87MM | 2 | 34211101760 | $126.82 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| -- | Spring washer | B6 | 2 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 02 | Kit dust cap | 2 | 34213061733 | $3.91 | Shop at ECS Tuning | |||||
| 04 | Cup | 4 | 34213061731 | $29.02 | Shop at ECS Tuning | |||||
| 05 | Compression spring | 4 | 34212061731 | $1.22 | ENDED | Shop at ECS Tuning | ||||
| 06 | Ventilation valve | 2 | 34219023168 | $8.13 | Shop at ECS Tuning | |||||
| 07 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 08 | Gasket set brake cylinder | 15,87MM (5/8") | 2 | 34211102624 | $45.05 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
