Front brake pad wear sensor for BMW 1 Series E82 135i (2013)

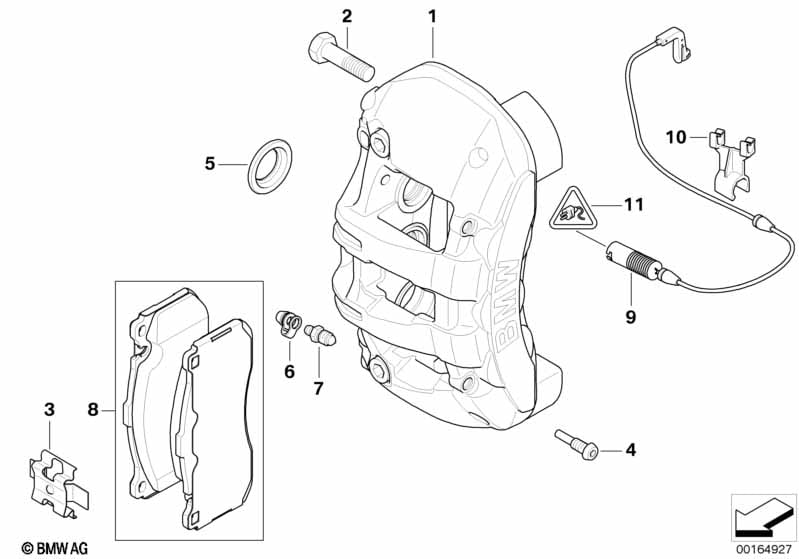

This Front brake pad wear sensor technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper housing left | 1 | 34106860143 | Shop at ECS Tuning | ||||||
| 01 | Caliper housing left | 1 | 34106786059 | $720.67 | +core | Shop at ECS Tuning | ||||
| 01 | Caliper housing right | 1 | 34106860144 | Shop at ECS Tuning | ||||||
| 01 | Caliper housing right | 1 | 34106786060 | $720.67 | +core | Shop at ECS Tuning | ||||
| 02 | Torx screw with washer | M12X1,5X43 ZNS3 | 4 | 34106864424 | Shop at ECS Tuning | |||||
| Note: Install on both sides | ||||||||||
| 03 | Expansion spring | 2 | 34106786062 | $9.47 | Shop at ECS Tuning | |||||
| 04 | Guide pin | 2 | 34116780506 | $1.97 | Shop at ECS Tuning | |||||
| 05 | Repair set brake caliper | 2 | 34116780507 | $4.40 | Shop at ECS Tuning | |||||
| 06 | Dust cap | 2 | 34116780508 | $1.95 | Shop at ECS Tuning | |||||
| 07 | Ventilation valve | 2 | 34116780509 | $3.12 | Shop at ECS Tuning | |||||
| 08 | Repair kit, brake pads asbestos-free | 1 | 10/2010 | 34116797860 | Shop at ECS Tuning | |||||
| The following parts are also mandatory: - brake pad wear sensor - brake pad paste Also recommended for vehicles older than 48 months: - replace expanding spring and guide pin see repair instruction! |
||||||||||
| 09 | Brake pad wear sensor | 1 | 34356794285 | Shop at ECS Tuning | ||||||
| 10 | Clip for brake pad wear sensor | 1 | 34356779356 | $0.77 | Shop at ECS Tuning | |||||
