Rear brake / brake pad / wear sensor for BMW 1 Series E88 135i (2010)

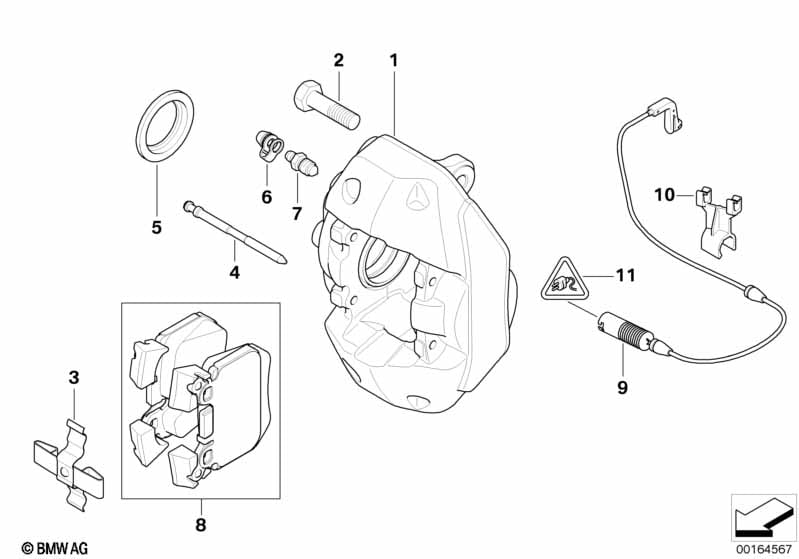

This Rear brake / brake pad / wear sensor technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper housing left | 1 | 34206860145 | Shop at ECS Tuning | ||||||
| 01 | Caliper housing right | 1 | 34206860146 | Shop at ECS Tuning | ||||||
| 01 | Caliper housing left | 1 | 34206785237 | $443.36 | +core | Shop at ECS Tuning | ||||
| 01 | Caliper housing right | 1 | 34206785238 | $443.36 | +core | Shop at ECS Tuning | ||||
| 02 | Collar screw, micro-encapsulated | M10X26,5 | 4 | 34203414763 | $1.32 | Shop at ECS Tuning | ||||
| 03 | Expansion spring | 2 | 34216780513 | $9.47 | Shop at ECS Tuning | |||||
| 04 | Guide pin | 2 | 34216780514 | $10.13 | Shop at ECS Tuning | |||||
| 05 | Repair set brake caliper | 2 | 34216780515 | $5.43 | Shop at ECS Tuning | |||||
| 06 | Dust cap | 2 | 34116780508 | $1.95 | Shop at ECS Tuning | |||||
| 07 | Ventilation valve | 2 | 34116780509 | $3.12 | Shop at ECS Tuning | |||||
| 08 | Repair kit, brake pads asbestos-free | 1 | 34216791421 | Shop at ECS Tuning | ||||||
| The following parts are also mandatory: - brake pad wear sensor - brake pad paste Also recommended for vehicles older than 48 months: - replace expanding spring and guide pin see repair instruction! |
||||||||||
| 09 | Brake pad wear sensor | 1 | 03/2010 | 34356789445 | $25.20 | Shop at ECS Tuning | ||||
| 10 | Clip for brake pad wear sensor | 1 | 34356779356 | $0.77 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E88 135i Rear brake / brake pad / wear sensor?
- This technical diagram illustrates the Rear brake / brake pad / wear sensor within the Brakes group for the 1 Series E88 135i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Caliper housing left (Part #34206860145).
- Which models use the hardware listed in this Rear brake / brake pad / wear sensor?
- The hardware and components featured in the Rear brake / brake pad / wear sensor are specific to the 1 Series E88 135i produced during 2010. These technical specifications ensure that parts like the Caliper housing left (34206860145) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear brake / brake pad / wear sensor assembly?
- Each item in the Rear brake / brake pad / wear sensor corresponds to the numbered list below the illustration. For the 1 Series E88 135i, you can identify the Caliper housing left by locating its position on the schematic, which then links to the official BMW part number 34206860145 for the Brakes section.
