Parking brake/brake shoes for BMW 7 Series F02 LCI 740Li (2015)

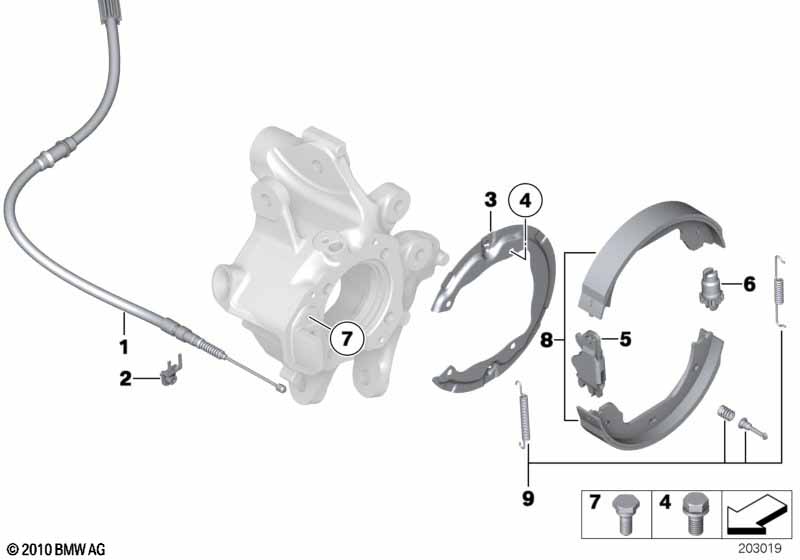

This Parking brake/brake shoes technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The following components are vital and mandatory for brake shoe replacements: spring repair kit brake shoe expander adjustment screw |
|||||||||
| 01 | Bowden cable, parking brake, right | 1 | 07/2013 | 34436883930 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bowden cable, parking brake, left | 1 | 07/2013 | 34436883929 | Shop at ECS Tuning | |||||
| 01 | Bowden cable, parking brake, left | 1 | 07/2013 | 34436883929 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bowden cable, parking brake, right | 1 | 07/2013 | 34436883930 | Shop at ECS Tuning | |||||
| 02 | Spring clip | 2 | 34436773602 | $1.84 | Shop at ECS Tuning | |||||
| 03 | Supporting ring | 2 | 34216775273 | $1.70 | Shop at ECS Tuning | |||||
| 04 | Self-locking hex bolt | M6X14-Z1-8.8-MK | 8 | 34206772121 | $0.43 | Shop at ECS Tuning | ||||
| 05 | Expanding lock | 2 | 34416851439 | Shop at ECS Tuning | ||||||
| 06 | Adjusting screw | 2 | 34416851437 | Shop at ECS Tuning | ||||||
| 07 | Hex screw with collar | M8 | 4 | 34216782768 | Shop at ECS Tuning | |||||
| 08 | Repair kit brake shoe asbestos-free | 1 | 34416790186 | $153.78 | Shop at ECS Tuning | |||||
| 09 | Repair kit springs | 1 | 34410038346 | $14.83 | Shop at ECS Tuning | |||||
