Front wheel brake for BMW 700LSL (1963)

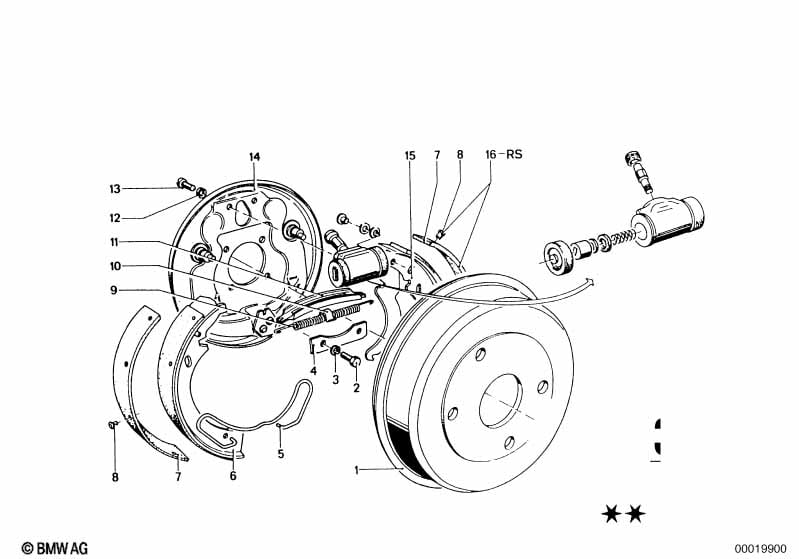

This Front wheel brake technical drawing provides a detailed breakdown of the assembly for the 700LSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1963.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake drum | D=200MM | 2 | 34212158446 | Shop at ECS Tuning | |||||
| 05 | Tension spring | 2 | 34213061717 | $17.47 | Shop at ECS Tuning | |||||
| 07 | Brake lining asbestos-free | 200MM JURID 580 | 2 | 34211159581 | $18.81 | ENDED | Shop at ECS Tuning | |||
| 08 | Rivet | C3X8 | 32 | 07119949208 | $0.21 | Shop at ECS Tuning | ||||
| 09 | Tension spring | 2 | 34213061716 | $3.39 | Shop at ECS Tuning | |||||
| 10 | Bow | 2 | 34213061725 | $9.02 | Shop at ECS Tuning | |||||
| 11 | Thrust rod left | 1 | 34213061722 | $14.73 | Shop at ECS Tuning | |||||
| 11 | Thrust rod right | 1 | 34213061723 | $14.73 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 700LSL Front wheel brake?
- This technical diagram illustrates the Front wheel brake within the Brakes group for the 700LSL produced during 1963. It provides a detailed exploded view of the components, identifying key parts such as the Brake drum (Part #34212158446).
- Which models use the hardware listed in this Front wheel brake?
- The hardware and components featured in the Front wheel brake are specific to the 700LSL produced during 1963. These technical specifications ensure that parts like the Brake drum (34212158446) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front wheel brake assembly?
- Each item in the Front wheel brake corresponds to the numbered list below the illustration. For the 700LSL, you can identify the Brake drum by locating its position on the schematic, which then links to the official BMW part number 34212158446 for the Brakes section.
