Front brake pad wear sensor for BMW 3 Series E91 LCI 330d (2012)

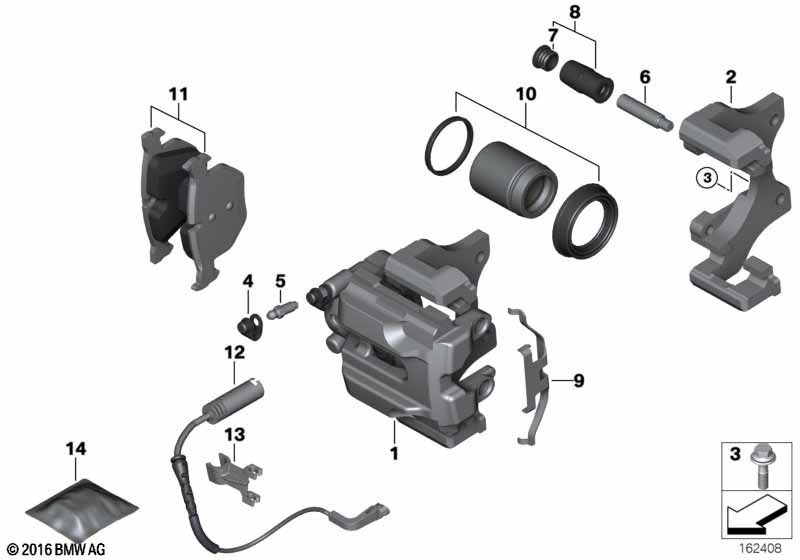

This Front brake pad wear sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Not suitable for "Performance Parts" | |||||||||
| 01 | Caliper housing left | 1 | 09/2009 | 34116769093 | $308.45 | Shop at ECS Tuning | ||||
| 01 | Caliper housing right | 1 | 09/2009 | 34116769094 | $308.45 | Shop at ECS Tuning | ||||
| 02 | Calliper carrier | 2 | 09/2009 | 34116769097 | $190.98 | Shop at ECS Tuning | ||||
| 03 | Torx screw with washer | M12X1,5X43 ZNS3 | 4 | 09/2009 | 34106864424 | Shop at ECS Tuning | ||||
| 04 | Dust cap | 2 | 09/2009 | 34111163435 | $4.20 | Shop at ECS Tuning | ||||
| 05 | Ventilation valve | M10X1 | 2 | 09/2009 | 34116768018 | $6.60 | Shop at ECS Tuning | |||
| 06 | Guiding bolt | 4 | 09/2009 | 34111157041 | $20.02 | Shop at ECS Tuning | ||||
| 07 | Protective plug | 4 | 09/2009 | 34111154979 | $1.80 | Shop at ECS Tuning | ||||
| 08 | Repair kit guide bush | 2 | 09/2009 | 34216869617 | Shop at ECS Tuning | |||||
| 09 | Clip | 2 | 09/2009 | 34116776526 | $8.97 | Shop at ECS Tuning | ||||
| 10 | Repair set brake caliper | 2 | 09/2009 | 34116769090 | $25.42 | Shop at ECS Tuning | ||||
| 11 | Repair kit, brake pads asbestos-free | 1 | 09/2009 | 34116771868 | $159.46 | Shop at ECS Tuning | ||||
| The following additional parts are also essential: - brake pad sensor - brake pad paste The following recommendation applies to vehicles more than 48 months old: - Replace retaining spring refer to Repair Manual! |
||||||||||
| 12 | Brake pad wear sensor | 1 | 03/2010 | 34356792560 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clip for brake pad wear sensor | 1 | 03/2010 | 34356779356 | $0.77 | Shop at ECS Tuning | ||||
| 14 | Brake pad paste | 3G | 2 | 09/2009 | 83192158851 | Shop at ECS Tuning | ||||
