Hydro unit DSC/control unit/fastening for BMW MINI R56 LCI Cooper (2010)

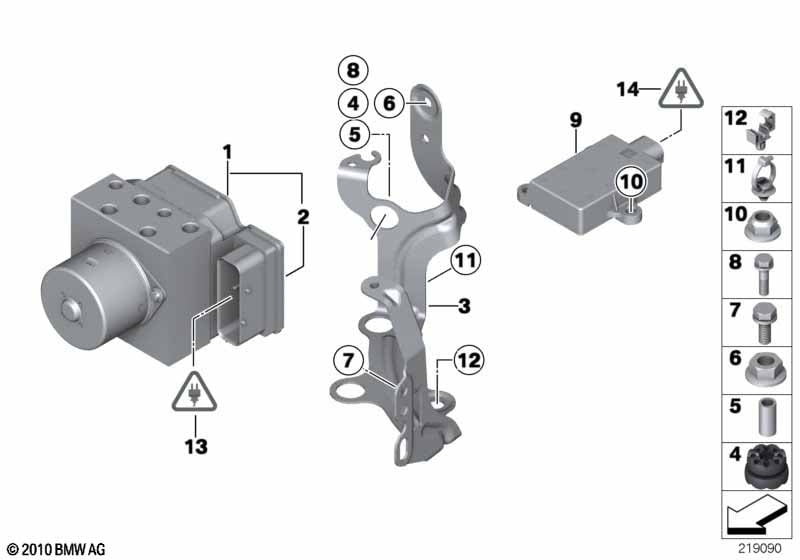

This Hydro unit DSC/control unit/fastening technical drawing provides a detailed breakdown of the assembly for the MINI R56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles produced from 08/01/2010 |
|||||||||
| 01 | Hydro unit DSC | 1 | 08/2010 | 11/2011 | 34529813836 | Shop at ECS Tuning | ||||
| 02 | Repair kit, control unit DSC | 1 | 08/2010 | 11/2011 | 34529813835 | Shop at ECS Tuning | ||||
| 03 | Bracket hydraulic unit | 1 | 08/2010 | 34516790485 | $35.68 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 3 | 08/2010 | 34511162818 | $2.57 | Shop at ECS Tuning | ||||
| 05 | Spacer sleeve | ZNS3 | 3 | 08/2010 | 07146977328 | $1.21 | Shop at ECS Tuning | |||
| 06 | Hex nut | M8-ZNS3 | 1 | 08/2010 | 07119904024 | $0.20 | Shop at ECS Tuning | |||
| 07 | Hex bolt | M8X20-8.8ZNS3 | 2 | 08/2010 | 07119904401 | $0.38 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M6X30 | 3 | 08/2010 | 07119904400 | Shop at ECS Tuning | ||||
| 09 | Speed sensor | 1 | 08/2010 | 34526797326 | Shop at ECS Tuning | |||||
| 10 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 08/2010 | 07119905949 | $0.24 | Shop at ECS Tuning | |||
| 11 | Cable strap with bracket | Ø=7,9 / L=150 | 1 | 08/2010 | 61138375988 | $0.37 | Shop at ECS Tuning | |||
| 12 | Tubing support | 1 | 08/2010 | 34306779788 | Shop at ECS Tuning | |||||
| 13 | Socket housing | 38 POL. Z- CODE | 1 | 08/2010 | 61136920060 | $8.38 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cont.bush.ELO-power sg.cond.seal w/cable | 0,5- 1,0 MM² SN | 1 | 08/2010 | 61130070582 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,35-0,5 MM² | 1 | 08/2010 | 61136901726 | $0.43 | Shop at ECS Tuning | |||
| -- | Slider | 1 | 08/2010 | 61136920061 | $0.68 | Shop at ECS Tuning | ||||
| -- | Socket housing | 36 POL. | 1 | 08/2010 | 61136920062 | $1.22 | Shop at ECS Tuning | |||
| -- | Socket contact ELO-Power 5,2x0,63 | 2,5- 4,0 MM² | 1 | 08/2010 | 61138364848 | $0.62 | Shop at ECS Tuning | |||
| -- | Single conductor seal | 0.5-1.0MM² GN | 1 | 08/2010 | 61138366245 | $0.17 | Shop at ECS Tuning | |||
| -- | Single conductor seal | 2,5- 4,0 MM² | 1 | 08/2010 | 61138372638 | $0.50 | Shop at ECS Tuning | |||
