Brake pipe rear for BMW 3 Series F34 GT 318d (2016)

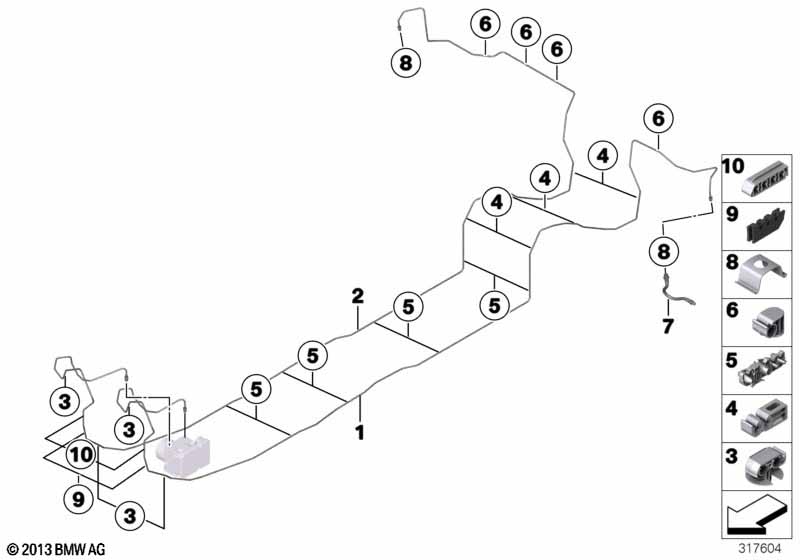

This Brake pipe rear technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | 1 | 34326865587 | Shop at ECS Tuning | ||||||
| 02 | Pipe | 1 | 34326865585 | Shop at ECS Tuning | ||||||
| 03 | Bracket, brake pipe, double | 2 | 34326850572 | Shop at ECS Tuning | ||||||
| 04 | Wire clip, dual | 4 | 34326871117 | Shop at ECS Tuning | ||||||
| 05 | Wiring clip, quadruple | 4 | 16127258742 | Shop at ECS Tuning | ||||||
| 06 | Brake pipe bracket | 4 | 34326855500 | Shop at ECS Tuning | ||||||
| 07 | Brake hose rear | 2 | 34306792253 | Shop at ECS Tuning | ||||||
| 08 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 09 | Grommet | 1 | 34306792093 | Shop at ECS Tuning | ||||||
| 10 | Spacer, 4-way | 1 | 34326777692 | $0.38 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F34 GT 318d Brake pipe rear?
- This technical diagram illustrates the Brake pipe rear within the Brakes group for the 3 Series F34 GT 318d produced during 2016. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #34326865587).
- Which models use the hardware listed in this Brake pipe rear?
- The hardware and components featured in the Brake pipe rear are specific to the 3 Series F34 GT 318d produced during 2016. These technical specifications ensure that parts like the Pipe (34326865587) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe rear assembly?
- Each item in the Brake pipe rear corresponds to the numbered list below the illustration. For the 3 Series F34 GT 318d, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 34326865587 for the Brakes section.
