Hydro unit DSC/fastening/sensors for BMW 3 Series F34 GT 320d (2015)

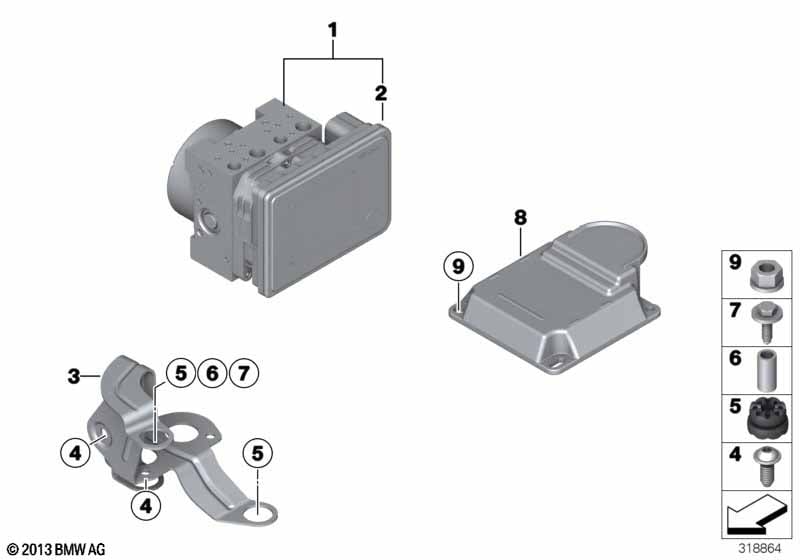

This Hydro unit DSC/fastening/sensors technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hydro unit DSC | 1 | 34516897117 | Shop at ECS Tuning | ||||||
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
|||||||||
| 01 | Hydro unit DSC | 1 | 34516897119 | Shop at ECS Tuning | ||||||
| 02 | Repair kit, control unit DSC | 1 | 34526897118 | Shop at ECS Tuning | ||||||
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
|||||||||
| 02 | Repair kit, control unit DSC | 1 | 03/2018 | 34526887516 | ENDED | Shop at ECS Tuning | ||||
| 02 | Repair kit, control unit DSC | 1 | 34526897120 | Shop at ECS Tuning | ||||||
| 03 | Bracket hydro unit | 1 | 34516798904 | Shop at ECS Tuning | ||||||
| 04 | Torx screw | M6X10 ZNS3 | 3 | 34106772427 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Rubber Mounting | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 06 | Spacer sleeve | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 08 | ICM control unit | 1 | 34526887752 | Shop at ECS Tuning | ||||||
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
|||||||||
| 08 | ICM control unit | 1 | 34526887755 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive M suspension and Active cruise control+Stop&Go function |
S2VFA=Yes S5DFA=No |
|||||||||
| 08 | Control unit ICM - Plus | 1 | 34526887754 | Shop at ECS Tuning | ||||||
| 09 | Hex nut wiht flange | M6 | 4 | 07146986935 | $2.62 | Shop at ECS Tuning | ||||
