Brake pipe, front for BMW 3 Series F34 GT 320d (2015)

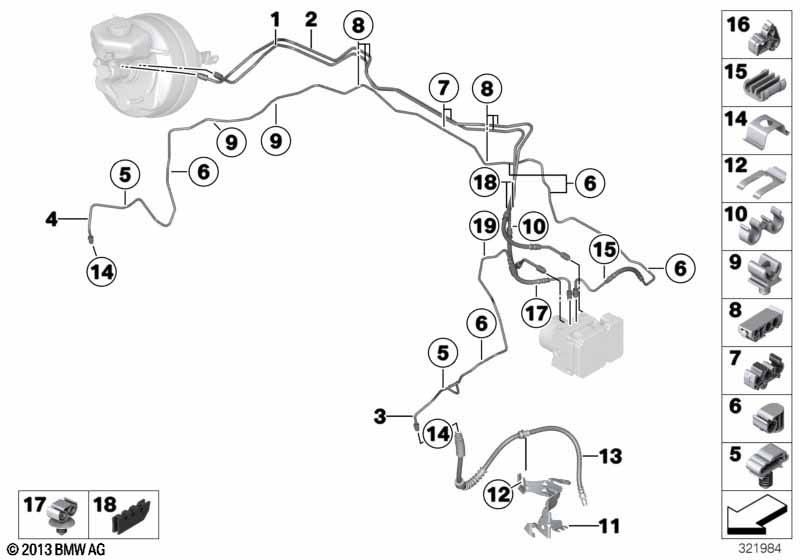

This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
||||||||
| 01 | Pipeline with pressure hose | 1 | 34326864082 | Shop at ECS Tuning | ||||||
| 02 | Pipeline with pressure hose | 1 | 34326864083 | Shop at ECS Tuning | ||||||
| 03 | Pipeline with pressure hose | 1 | 34306864173 | Shop at ECS Tuning | ||||||
| 04 | Pipeline with pressure hose | 1 | 34326864174 | Shop at ECS Tuning | ||||||
| 05 | Tubing support | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 06 | Brake pipe bracket | 4 | 34326855500 | Shop at ECS Tuning | ||||||
| 07 | Bracket, brake pipe, 3-fold | 1 | 34306792095 | Shop at ECS Tuning | ||||||
| 08 | Bracket, brake pipe, 3-fold | 2 | 34326799264 | Shop at ECS Tuning | ||||||
| 09 | Clip retainer | 2 | 34306766380 | $0.35 | Shop at ECS Tuning | |||||
| 10 | Spacer | 1 | 61131379882 | Shop at ECS Tuning | ||||||
| 11 | Bracket for brake hose, front left | 1 | 34306792255 | Shop at ECS Tuning | ||||||
| 11 | Bracket for brake hose, front right | 1 | 34306792256 | Shop at ECS Tuning | ||||||
| 12 | Retaining spring f brake hose | 2 | 34306771981 | $0.52 | Shop at ECS Tuning | |||||
| 13 | Brake hose front | 2 | 34306792254 | Shop at ECS Tuning | ||||||
| 14 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 15 | Spacer, 4-way | 1 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 16 | Spacer holder | 1 | 34321107991 | $1.02 | Shop at ECS Tuning | |||||
| 17 | Holder | 1 | 34306858780 | Shop at ECS Tuning | ||||||
| 18 | Bracket, brake pipe, double | 1 | 34306799265 | Shop at ECS Tuning | ||||||
| 19 | Grommet | 1 | 34306792093 | Shop at ECS Tuning | ||||||
