Rear brake / brake pad / wear sensor for BMW 4 Series F36 Gran Coupé 418d (2017)

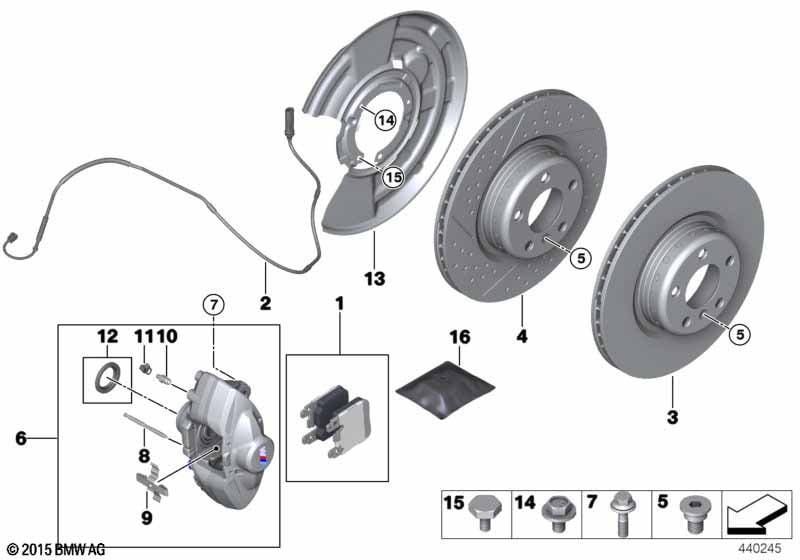

This Rear brake / brake pad / wear sensor technical drawing provides a detailed breakdown of the assembly for the 4 Series F36 Gran Coupé 418d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sport brakes |
S2NHA=Yes |
||||||||
| 01 | Repair kit, brake pads asbestos-free | 1 | 34216887576 | Shop at ECS Tuning | ||||||
| The following parts are also mandatory: - brake pad wear sensor - brake pad paste Also recommended for vehicles older than 48 months: - replace expanding spring and guide pin see repair instruction! |
||||||||||
| 02 | Brake pad wear sensor, rear | 1 | 34356792292 | Shop at ECS Tuning | ||||||
| 03 | Brake disc, lightweight, ventilated | 345X24 | 2 | 34206894382 | Shop at ECS Tuning | |||||
| The following parts are also mandatory: - brake pads - brake pad wear sensor - brake pad paste Also recommended for vehicles older than 48 months: - replace expanding spring and guide pin see repair instruction! |
||||||||||
| Alternate part: Original BMW Accessories | ||||||||||
| 04 | Brake rotor, ventilated, drilled, rear | 345X24 | 2 | 34206797600 | Shop at ECS Tuning | |||||
| The following parts are also mandatory: - brake pads - brake pad wear sensor - brake pad paste Also recommended for vehicles older than 48 months: - replace expanding spring and guide pin see repair instruction! |
||||||||||
| 05 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 06 | Caliper housing left | 1 | 34216799461 | Shop at ECS Tuning | ||||||
| 06 | Caliper housing right | 1 | 34216799462 | Shop at ECS Tuning | ||||||
| 07 | Hex screw with collar | M12X1,5X32 ZNS3 | 4 | 34206850536 | Shop at ECS Tuning | |||||
| 08 | Guide pin | 2 | 34216857152 | Shop at ECS Tuning | ||||||
| 09 | Expansion spring | 2 | 34216857151 | Shop at ECS Tuning | ||||||
| 10 | Ventilation valve | 2 | 34116780509 | $3.12 | Shop at ECS Tuning | |||||
| 11 | Dust cap | 2 | 34116780508 | $1.95 | Shop at ECS Tuning | |||||
| 12 | Repair set brake caliper | 2 | 34216857153 | Shop at ECS Tuning | ||||||
| 13 | Protection plate left | 1 | 34216792247 | Shop at ECS Tuning | ||||||
| 13 | Protection plate right | 1 | 34216792248 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt with washer | M6X12-U1 | 4 | 07119904511 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M8 | 4 | 34211164044 | $1.03 | Shop at ECS Tuning | ||||
| 16 | Brake pad paste | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
