Rear brake / brake pad / wear sensor for BMW 3 Series E36 316i (1994)

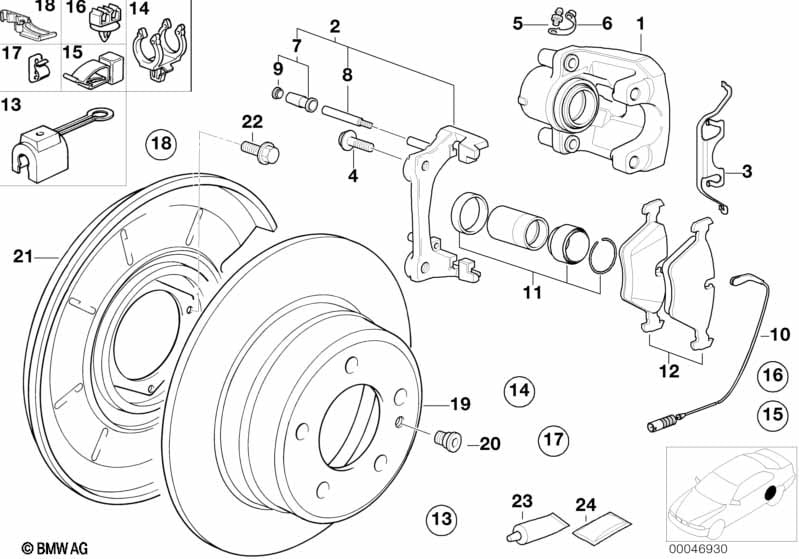

This Rear brake / brake pad / wear sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Caliper housing left | 1 | 34211160333 | $350.83 | ENDED | Shop at ECS Tuning | ||||
| 01 | Caliper housing right | 1 | 34211160334 | $350.83 | ENDED | Shop at ECS Tuning | ||||
| 02 | Calliper carrier | 2 | 34211160332 | $215.64 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clip | 2 | 34211157046 | $9.92 | Shop at ECS Tuning | |||||
| 04 | Collar screw, micro-encapsulated | M10X26,5 | 4 | 34203414763 | $1.32 | Shop at ECS Tuning | ||||
| 05 | Ventilation valve | SW7 | 2 | 34111153197 | $7.72 | Shop at ECS Tuning | ||||
| 06 | Dust cap | 2 | 34111153198 | $6.15 | Shop at ECS Tuning | |||||
| 07 | Repair kit guide bush | 2 | 34216869617 | Shop at ECS Tuning | ||||||
| 08 | Guiding bolt | 4 | 34111157041 | $20.02 | Shop at ECS Tuning | |||||
| 09 | Protective plug | 4 | 34111154979 | $1.80 | Shop at ECS Tuning | |||||
| 10 | Brake pad wear sensor | 1 | 34351181342 | $18.04 | Shop at ECS Tuning | |||||
| 11 | Repair set brake caliper | FN38 | 1 | 34211159171 | $39.47 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Special motor |
S961A=Yes |
|||||||||
| 11 | Repair set brake caliper | FN36 | 2 | 34211158883 | $39.47 | ENDED | Shop at ECS Tuning | |||
| 12 | Repair kit, brake pads asbestos-free | 1 | 34216778168 | $88.38 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Brake pad paste | 3G | 1 | 83192158851 | Shop at ECS Tuning | |||||
| 13 | Holder | 1 | 34351153966 | $0.88 | Shop at ECS Tuning | |||||
| 16 | Cable holder | 3 | 33181181218 | $1.10 | Shop at ECS Tuning | |||||
| 19 | Rear brake disc | *ZA* | 2 | 34211160983 | ENDED | Shop at ECS Tuning | ||||
| 20 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 21 | Protection plate left | 1 | 34211158991 | $18.13 | Shop at ECS Tuning | |||||
| 21 | Protection plate right | 1 | 34211158992 | $18.13 | Shop at ECS Tuning | |||||
| 22 | Hex bolt with washer | M6X8 | 4 | 34103451068 | $2.61 | Shop at ECS Tuning | ||||
| 22 | Hex bolt | M8X11 12.9 | 4 | 34211158549 | $1.65 | Shop at ECS Tuning | ||||
| 24 | Brake pad paste | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
