Power brake unit depression for BMW 7 Series G11 750i (2018)

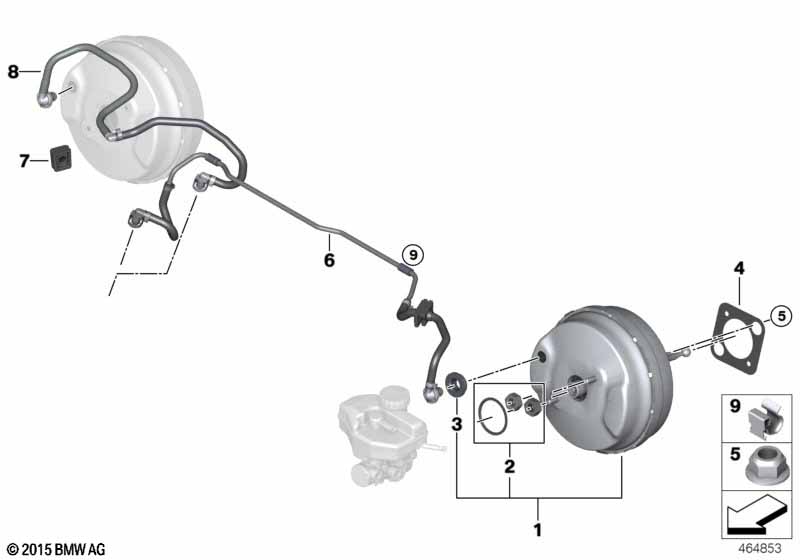

This Power brake unit depression technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit power brake unit | 1 | 34336873444 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Seal, brake booster | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Repair kit power brake unit | 1 | 34336875172 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Seal, brake booster | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | Repair kit for mounting elements | 1 | 34336877078 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Seal, brake booster | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Gasket | 1 | 34336893085 | Shop at ECS Tuning | ||||||
| 04 | Seal, brake booster | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| 05 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 08 | Vacuum pipe | 1 | 11668602033 | Shop at ECS Tuning | ||||||
