Vacuum pump for brake servo unit for BMW 2 Series F45 Active Tourer 225xe

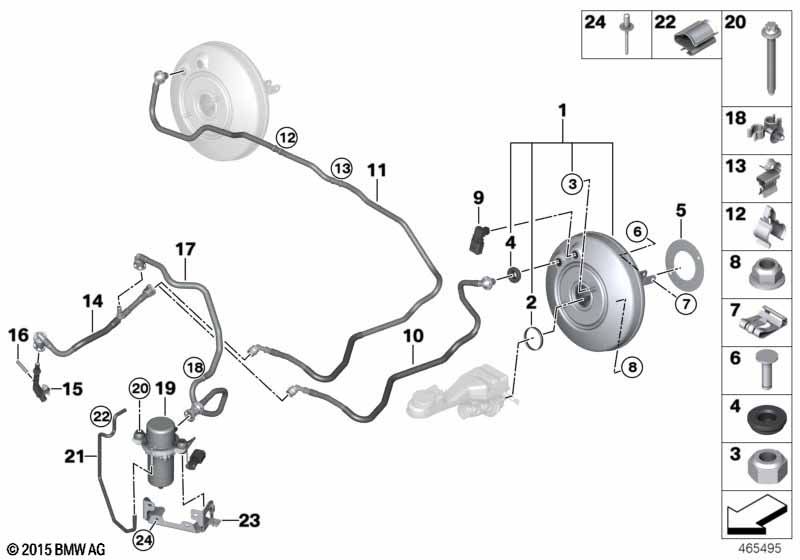

This Vacuum pump for brake servo unit technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 225xe. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | 1 | 34336873438 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Seal, brake booster | 1 | 34336857618 | Shop at ECS Tuning | ||||||
| -- | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | Brake master cylinder o-ring | 1 | 34336799317 | Shop at ECS Tuning | ||||||
| 03 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Gasket | 2 | 34336799318 | Shop at ECS Tuning | ||||||
| 05 | Seal, brake booster | 1 | 34336857618 | Shop at ECS Tuning | ||||||
| 06 | Brake pedal pin | 1 | 34336772928 | $0.66 | Shop at ECS Tuning | |||||
| 07 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Self-locking collar nut | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 09 | Pressure sensor | 1 | 34336875605 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 34336799318 | Shop at ECS Tuning | ||||||
| 11 | Vacuum pipe | 1 | 11668654731 | ENDED | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 34336799318 | Shop at ECS Tuning | ||||||
| 12 | Clip, tubing | 1 | 11668609373 | Shop at ECS Tuning | ||||||
| 13 | Tubing support | 1 | 34327698478 | $1.48 | Shop at ECS Tuning | |||||
| 14 | Vacuum pipe | 1 | 11668607937 | Shop at ECS Tuning | ||||||
| 15 | non-return valve | 1 | 11667620923 | Shop at ECS Tuning | ||||||
| 16 | Cap | 1 | 11667803829 | Shop at ECS Tuning | ||||||
| 17 | Vacuum pipe | 1 | 11668607939 | Shop at ECS Tuning | ||||||
| 18 | Holder | 1 | 11667555537 | Shop at ECS Tuning | ||||||
| 19 | Vacuum pump | 1 | 34336851289 | Shop at ECS Tuning | ||||||
| 20 | Hex bolt with washer | M6X50-8.8-ZNS3 | 2 | 07119907337 | Shop at ECS Tuning | |||||
| 21 | Discharge hose | 1 | 34336876773 | Shop at ECS Tuning | ||||||
| 22 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 23 | Bracket for vacuum pump | 1 | 34336860028 | Shop at ECS Tuning | ||||||
| 24 | Blind rivet | 4 | 07147265827 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
