Rear wheel brake for BMW 5 Series G30 520i (2019)

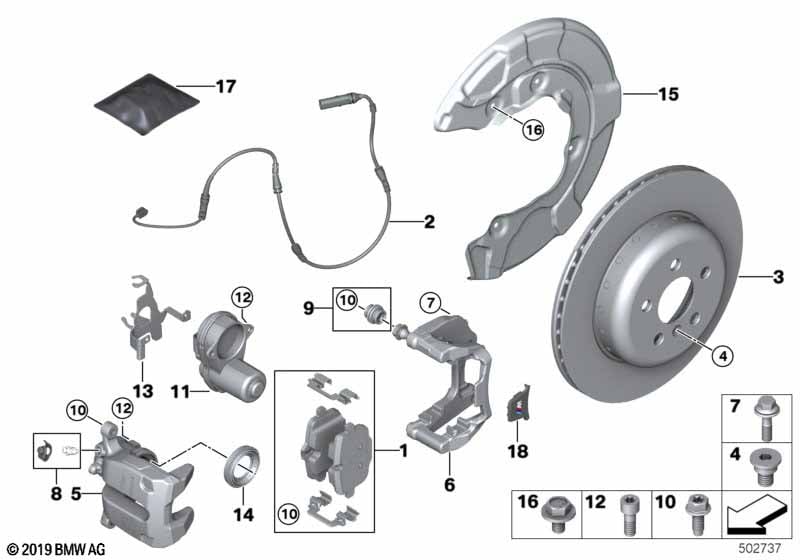

This Rear wheel brake technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | Repair kit, brake pads asbestos-free | 1 | 34216885451 | Shop at ECS Tuning | ||||||
| In addition, the following parts are essential: - brake pad sensor - brake pad paste refer to Repair Manual! |
||||||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | Repair kit, brake pads asbestos-free | 1 | 34216885452 | Shop at ECS Tuning | ||||||
| In addition, the following parts are essential: - brake pad sensor - brake pad paste refer to Repair Manual! |
||||||||||
| 02 | Brake pad wear sensor, rear | 1 | 34356890791 | Shop at ECS Tuning | ||||||
| The following additional parts are also essential: - brake pads - brake pad sensor - brake pad paste refer to Repair Manual! |
||||||||||
| 03 | Brake disc, lightweight, ventilated,left | 330X20 | 1 | 34216882245 | Shop at ECS Tuning | |||||
| 03 | Brake disc, lightweight,ventilated,right | 330X20 | 1 | 34216882246 | Shop at ECS Tuning | |||||
| 04 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 05 | Caliper housing left | 1 | 34216870575 | Shop at ECS Tuning | ||||||
| 05 | Caliper housing right | 1 | 34216870576 | Shop at ECS Tuning | ||||||
| 06 | Calliper carrier left | 1 | 34206870583 | Shop at ECS Tuning | ||||||
| 06 | Calliper carrier right | 1 | 34206870584 | Shop at ECS Tuning | ||||||
| 07 | Torx screw with washer | M12X1,5X43 ZNS3 | 4 | 34108838589 | Shop at ECS Tuning | |||||
| 08 | Repair kit ventilation valve | 2 | 34116768188 | $6.52 | Shop at ECS Tuning | |||||
| 09 | Repair kit bellows | 2 | 34216888077 | Shop at ECS Tuning | ||||||
| 10 | Hex bolt | M8X22 | 4 | 34206850560 | Shop at ECS Tuning | |||||
| 11 | Repair kit, EMF actuator | 2 | 34216870567 | Shop at ECS Tuning | ||||||
| 12 | Hexagon socket bolt | M6X14 | 4 | 34206870566 | Shop at ECS Tuning | |||||
| 13 | Repair kit for wiring loom, left | 1 | 34216870569 | Shop at ECS Tuning | ||||||
| 13 | Repair kit for wiring loom, right | 1 | 34216870570 | Shop at ECS Tuning | ||||||
| 14 | Seal | 2 | 34206786064 | Shop at ECS Tuning | ||||||
| For vehicles with M Sport brakes |
S2NHA=No |
|||||||||
| 15 | Protection plate left | 1 | 34206899153 | Shop at ECS Tuning | ||||||
| 15 | Protection plate right | 1 | 34206899154 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt | M6X12-10.9-MK- | 8 | 34116868785 | Shop at ECS Tuning | |||||
| 17 | Brake pad paste | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
