Brake pipe, front for BMW 3 Series G20 Sedan 330d (2020)

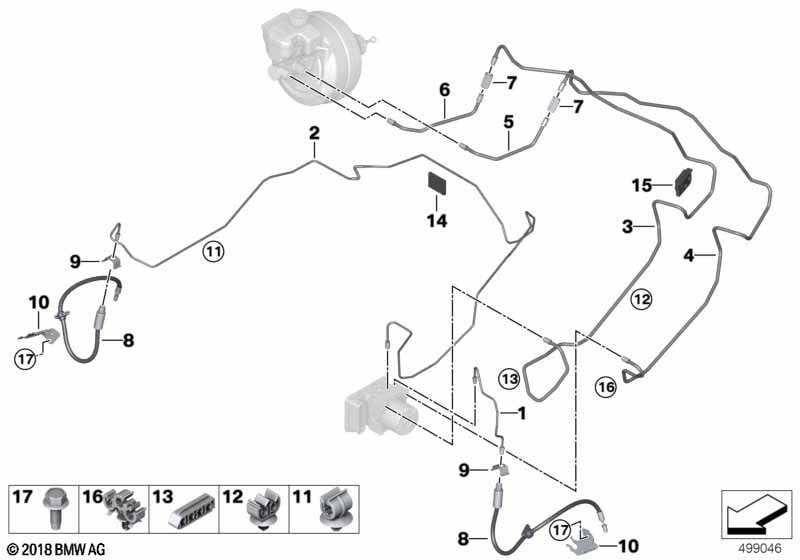

This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with CONTROL DSC |
S8WEA=Yes |
|||||||||
| 01 | Pipe | 1 | 34308847224 | Shop at ECS Tuning | ||||||
| For vehicles with CONTROL DSC |
S8WEA=No |
|||||||||
| 01 | Pipe | 1 | 34306876713 | Shop at ECS Tuning | ||||||
| For vehicles with CONTROL DSC |
S8WEA=Yes |
|||||||||
| 02 | Pipe | 1 | 34308847226 | Shop at ECS Tuning | ||||||
| For vehicles with CONTROL DSC |
S8WEA=No |
|||||||||
| 02 | Pipe | 1 | 34306876715 | Shop at ECS Tuning | ||||||
| For vehicles with CONTROL DSC |
S8WEA=Yes |
|||||||||
| 03 | Pipe | 1 | 34308847336 | Shop at ECS Tuning | ||||||
| For vehicles with CONTROL DSC |
S8WEA=No |
|||||||||
| 03 | Pipe | 1 | 06/2023 | 34306891445 | Shop at ECS Tuning | |||||
| 03 | Pipe | 1 | 34308867103 | NoS | Shop at ECS Tuning | |||||
| For vehicles with CONTROL DSC |
S8WEA=Yes |
|||||||||
| 04 | Pipe | 1 | 34308847340 | Shop at ECS Tuning | ||||||
| For vehicles with CONTROL DSC |
S8WEA=No |
|||||||||
| 04 | Pipe | 1 | 34306891441 | Shop at ECS Tuning | ||||||
| 05 | Pipe | 1 | 34306891443 | Shop at ECS Tuning | ||||||
| 06 | Pipe | 1 | 34306891439 | Shop at ECS Tuning | ||||||
| 07 | Connection piece | 2 | 34326891451 | Shop at ECS Tuning | ||||||
| 08 | Brake hose front | 2 | 34306879281 | Shop at ECS Tuning | ||||||
| 09 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 10 | Bracket for brake hose, front left | 1 | 34301543315 | Shop at ECS Tuning | ||||||
| 10 | Bracket for brake hose, front right | 1 | 34306877744 | Shop at ECS Tuning | ||||||
| 11 | Clip | 5 | 34326871821 | Shop at ECS Tuning | ||||||
| 12 | Wire clip, dual | 2 | 34326871590 | Shop at ECS Tuning | ||||||
| 13 | Spacer, 4-way | 1 | 34326777692 | $0.38 | Shop at ECS Tuning | |||||
| 14 | Base | 35X45X6 MM | 1 | 16111182585 | $1.08 | Shop at ECS Tuning | ||||
| 15 | Grommet, upper section | 1 | 34306891452 | Shop at ECS Tuning | ||||||
| 15 | Grommet bottom part | 1 | 34306891453 | Shop at ECS Tuning | ||||||
| 16 | Tubing support | 3 SPURIG | 1 | 34326891455 | Shop at ECS Tuning | |||||
| 17 | Screw self-tapping | M6X16MM | 4 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
