Power brake for BMW 3 Series G28 Sedan LCI 325LiX (2024)

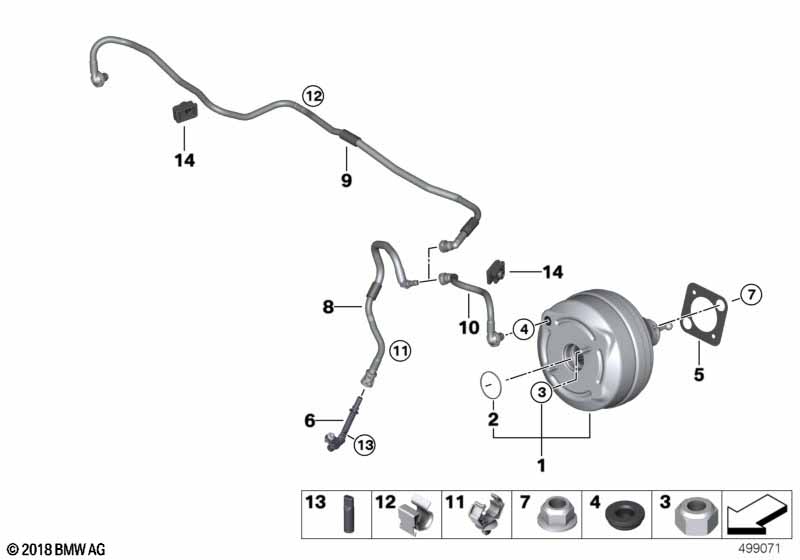

This Power brake technical drawing provides a detailed breakdown of the assembly for the 3 Series G28 Sedan LCI 325LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit power brake unit | 1 | 34336890282 | Shop at ECS Tuning | ||||||
| 02 | Brake master cylinder o-ring | 1 | 34336799317 | Shop at ECS Tuning | ||||||
| 03 | Self-locking hex nut | M8-8-ZNNI SI | 3 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Gasket | 1 | 34336799318 | Shop at ECS Tuning | ||||||
| 05 | Seal, brake booster | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| 06 | non-return valve | 1 | 11667620923 | Shop at ECS Tuning | ||||||
| 07 | Self-locking collar nut | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Vacuum pipe | 1 | 11665A09C59 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 34336799318 | Shop at ECS Tuning | ||||||
| 10 | Vacuum pipe | 1 | 11668664526 | Shop at ECS Tuning | ||||||
| 11 | Tubing support | 1 | 13547714512 | Shop at ECS Tuning | ||||||
| 13 | Cap | 1 | 11667803829 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Gasket | 1 | 34336799318 | Shop at ECS Tuning | ||||||
