M Performance brake booster for BMW 4 Series G22 Coupé 420i (2024)

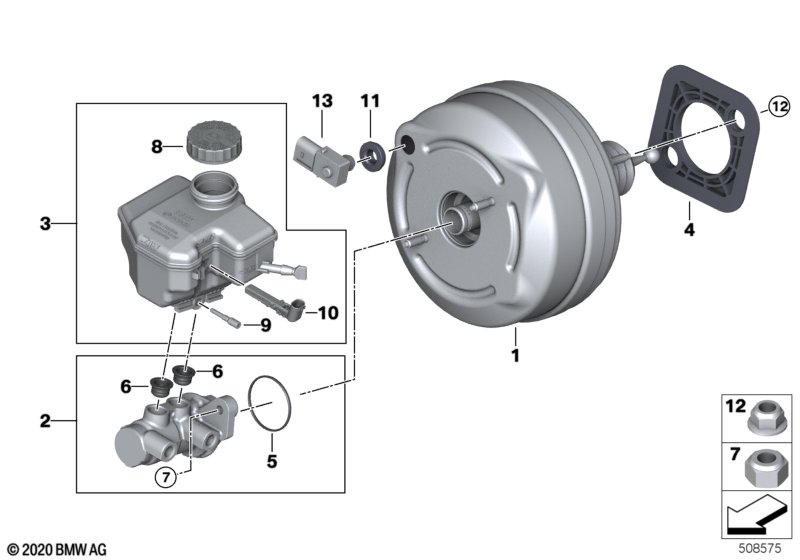

This M Performance brake booster technical drawing provides a detailed breakdown of the assembly for the 4 Series G22 Coupé 420i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit power brake unit | 1 | 34336889796 | Shop at ECS Tuning | ||||||
| 02 | Repair kit brake master cylinder | 1 | 34336892205 | Shop at ECS Tuning | ||||||
| 03 | Repair kit, expansion tank | 1 | 34336889802 | Shop at ECS Tuning | ||||||
| 04 | Seal, brake booster | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| 05 | Brake master cylinder o-ring | 1 | 34336799317 | Shop at ECS Tuning | ||||||
| 06 | Plug | 2 | 34336799316 | Shop at ECS Tuning | ||||||
| 07 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Lock | 1 | 34336851090 | Shop at ECS Tuning | ||||||
| 09 | Mounting screw | 1 | 34336865679 | Shop at ECS Tuning | ||||||
| 10 | Warning switch | 1 | 34336796853 | Shop at ECS Tuning | ||||||
| 11 | Gasket | 1 | 34336799318 | Shop at ECS Tuning | ||||||
| 12 | Self-locking collar nut | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G22 Coupé 420i M Performance brake booster?
- This technical diagram illustrates the M Performance brake booster within the Brakes group for the 4 Series G22 Coupé 420i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Repair kit power brake unit (Part #34336889796).
- Which models use the hardware listed in this M Performance brake booster?
- The hardware and components featured in the M Performance brake booster are specific to the 4 Series G22 Coupé 420i produced during 2024. These technical specifications ensure that parts like the Repair kit power brake unit (34336889796) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M Performance brake booster assembly?
- Each item in the M Performance brake booster corresponds to the numbered list below the illustration. For the 4 Series G22 Coupé 420i, you can identify the Repair kit power brake unit by locating its position on the schematic, which then links to the official BMW part number 34336889796 for the Brakes section.
