Brake pipe rear for BMW 8 Series G16 Gran Coupé 840dX (2024)

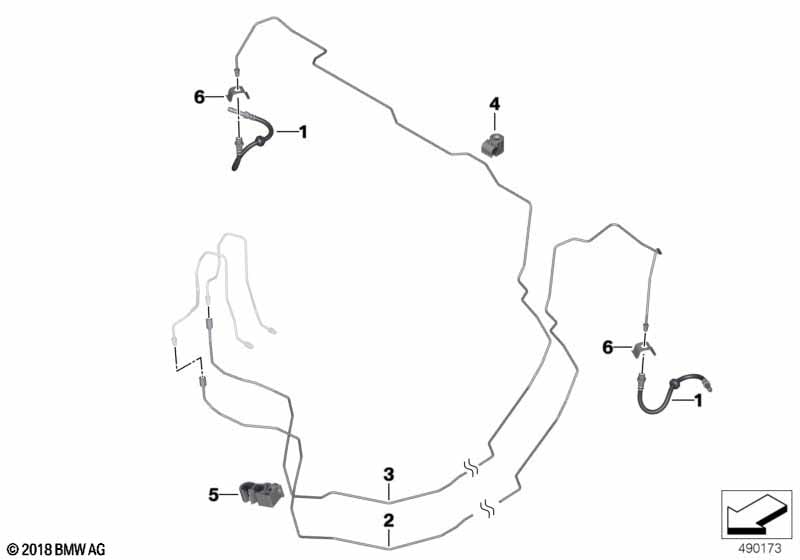

This Brake pipe rear technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake hose rear | 2 | 34206884953 | Shop at ECS Tuning | ||||||
| 02 | Pipe connection | 1 | 34306893995 | Shop at ECS Tuning | ||||||
| 03 | Pipe connection | 1 | 34306893999 | Shop at ECS Tuning | ||||||
| 04 | Brake pipe bracket | 2 | 34326855500 | Shop at ECS Tuning | ||||||
| 05 | Wire clip, dual | 8 | 34326871117 | Shop at ECS Tuning | ||||||
| 06 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning |
