Front brake pad wear sensor for BMW 5 Series G30 LCI 520d (2023)

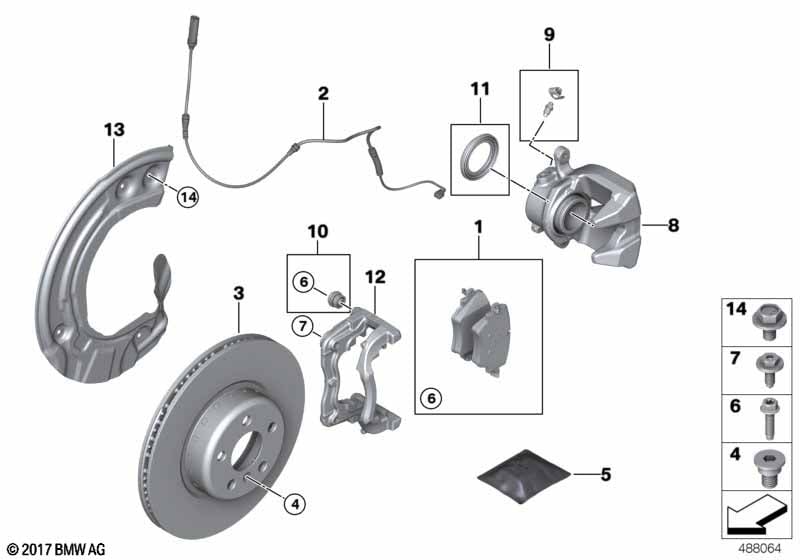

This Front brake pad wear sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sport brakes and M SPORT BRAKE, RED HIGH-GLOSS |
S2NHA=No S3M2A=No |
||||||||
| 01 | Repair kit, brake pads asbestos-free | 1 | 34106884492 | Shop at ECS Tuning | ||||||
| In addition, the following parts are essential: - brake pad sensor - brake pad paste refer to Repair Manual! |
||||||||||
| 02 | Brake pad wear sensor, front | 1 | 34356890788 | Shop at ECS Tuning | ||||||
| 03 | Brake disc, lightweight, ventilated | 330X24 | 2 | 08/2023 | 34116860907 | Shop at ECS Tuning | ||||
| The following additional parts are also essential: - brake pads - brake pad sensor - brake pad paste refer to Repair Manual! |
||||||||||
| 03 | Brake disc, lightweight, ventilated | 330X24 | 2 | 34106880072 | Shop at ECS Tuning | |||||
| The following additional parts are also essential: - brake pads - brake pad sensor - brake pad paste refer to Repair Manual! |
||||||||||
| 04 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 05 | Brake pad paste | 3 G | 2 | 83192180000 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 05 | Brake pad paste | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X22 | 4 | 34206850560 | Shop at ECS Tuning | |||||
| 07 | Torx screw with washer | M12X1,5X43 ZNS3 | 4 | 34106864424 | Shop at ECS Tuning | |||||
| 08 | Caliper housing left | 1 | 34106872799 | Shop at ECS Tuning | ||||||
| 08 | Caliper housing right | 1 | 34106872800 | Shop at ECS Tuning | ||||||
| 09 | Repair kit ventilation valve | 2 | 34116768188 | $6.52 | Shop at ECS Tuning | |||||
| 10 | Repair kit bellows | 2 | 34116872804 | Shop at ECS Tuning | ||||||
| 11 | Repair set brake caliper | 2 | 34116872802 | Shop at ECS Tuning | ||||||
| 12 | Calliper carrier left | 1 | 34106882255 | Shop at ECS Tuning | ||||||
| 12 | Calliper carrier right | 1 | 34106882256 | Shop at ECS Tuning | ||||||
| 13 | Protection plate left | 1 | 34106861797 | Shop at ECS Tuning | ||||||
| 13 | Protection plate right | 1 | 34106861798 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt | M6X12-10.9-MK- | 8 | 34116868785 | Shop at ECS Tuning | |||||
