Brake pipe rear for BMW 2 Series U06 Active Tourer 220d (2025)

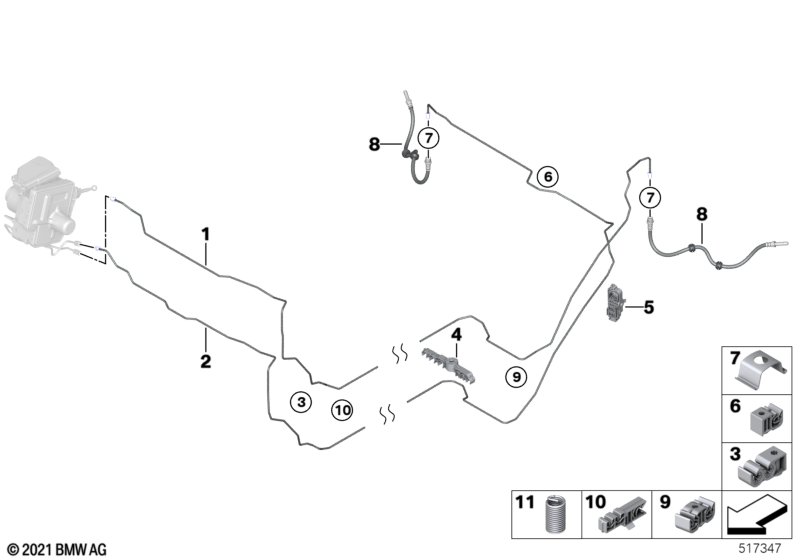

This Brake pipe rear technical drawing provides a detailed breakdown of the assembly for the 2 Series U06 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | 1 | 11/2022 | 34308838537 | Shop at ECS Tuning | |||||
| 02 | Pipe | 1 | 11/2022 | 34308838539 | Shop at ECS Tuning | |||||
| 03 | Holder, brake line | 4 | 11/2022 | 07148851873 | Shop at ECS Tuning | |||||
| 04 | Line clip 6 times | 1 | 17128474570 | Shop at ECS Tuning | ||||||
| 05 | Clip | 2X5.25 1X16 | 1 | 07146898250 | Shop at ECS Tuning | |||||
| 06 | Line clip | 2 | 07148851872 | Shop at ECS Tuning | ||||||
| 07 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 08 | Brake hose rear | 2 | 34306892743 | Shop at ECS Tuning | ||||||
| 09 | Pipe clip | D12/2XD4,75 | 2 | 07147318792 | Shop at ECS Tuning | |||||
| 10 | Pipe clip | D12/2XD4,75 | 5 | 07147318792 | Shop at ECS Tuning | |||||
| 11 | Heli-Coil threaded insert | M6X12 | 1 | 33306786621 | Shop at ECS Tuning |
