Vacuum pump for brake servo unit for BMW 3 Series G21 Touring LCI 330e (2024)

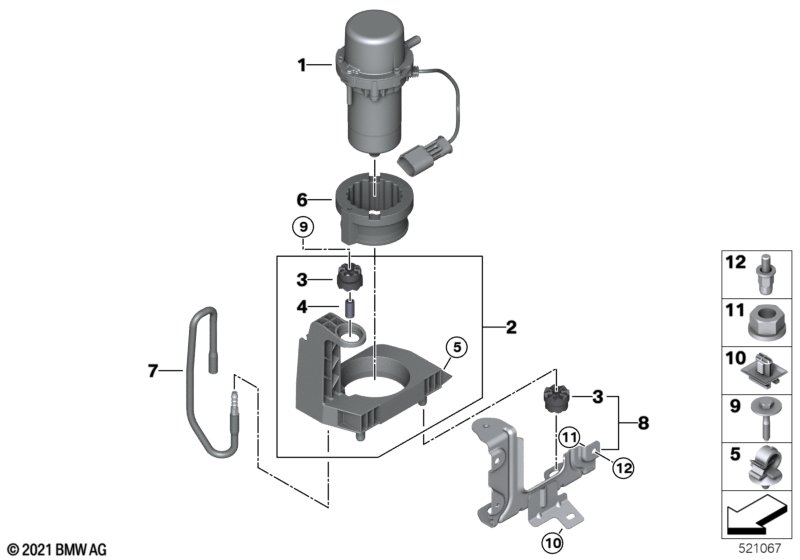

This Vacuum pump for brake servo unit technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vacuum pump | 1 | 34336880628 | Shop at ECS Tuning | ||||||
| 02 | Holder | 1 | 34336873024 | Shop at ECS Tuning | ||||||
| 03 | Rubber Mounting | 3 | 32416772178 | $2.93 | Shop at ECS Tuning | |||||
| 04 | Spacer sleeve | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 05 | Clip retainer | 1 | 61138368029 | $0.43 | Shop at ECS Tuning | |||||
| 06 | Supporting ring | 1 | 34336874234 | Shop at ECS Tuning | ||||||
| 07 | Air-discharge unit | 1 | 34336873026 | Shop at ECS Tuning | ||||||
| 08 | Support | 1 | 34336877926 | Shop at ECS Tuning | ||||||
| 08 | Holder | 1 | 34335A5D9E1 | NoS | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 10 | Plug-in connection bracket | 1 | 61139285769 | Shop at ECS Tuning | ||||||
| 11 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Not offered by BMW | X | 84210300311 | ENDED | Shop at ECS Tuning | |||||
| 12 | Blind rivet threaded stud | 3 | 07146846903 | Shop at ECS Tuning | ||||||
| 12 | Not offered by BMW | X | 84210300311 | ENDED | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
