Brake pipe, front for BMW 7 Series G70 740iX (2025)

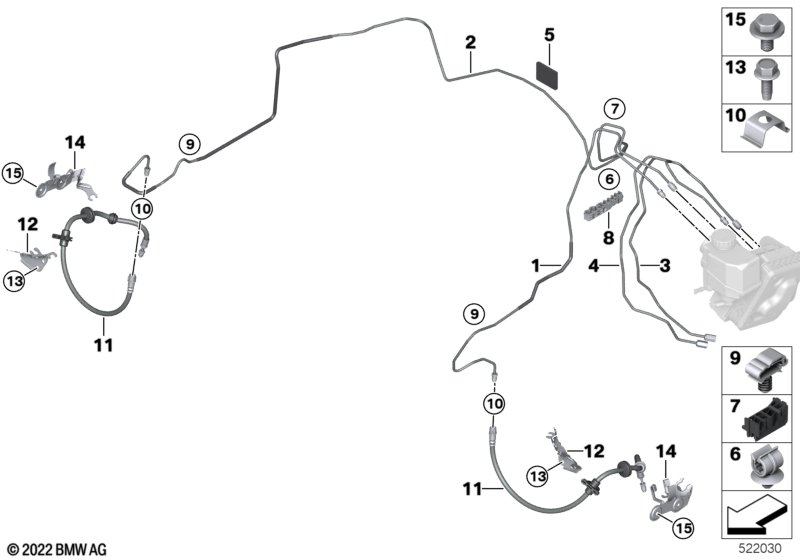

This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with BMW Personal pilot |
S5DXA=No |
||||||||
| 01 | Pipe | 1 | 34308840702 | Shop at ECS Tuning | ||||||
| 02 | Pipe | 1 | 34308840706 | Shop at ECS Tuning | ||||||
| 03 | Pipe | 1 | 34308840708 | Shop at ECS Tuning | ||||||
| 04 | Pipe | 1 | 34308840710 | Shop at ECS Tuning | ||||||
| 05 | Base | 35X45X6 MM | 1 | 16111182585 | $1.08 | Shop at ECS Tuning | ||||
| 06 | Clip | 4 | 34326871821 | Shop at ECS Tuning | ||||||
| 07 | Rubber grommet | 1 | 34308841207 | Shop at ECS Tuning | ||||||
| 07 | Wiring clip, triple | 1 | 34306886415 | Shop at ECS Tuning | ||||||
| 08 | Clip | 1 | 07148842765 | Shop at ECS Tuning | ||||||
| 09 | Tubing support | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 10 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 11 | Brake hose front | 2 | 34106899089 | Shop at ECS Tuning | ||||||
| 12 | Holder brake hose left front | 1 | 34308834735 | Shop at ECS Tuning | ||||||
| 12 | Holder brake hose right front | 1 | 34308834736 | Shop at ECS Tuning | ||||||
| 13 | Screw self-tapping | M6X16MM | 4 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| 14 | Bracket, brake hose, outer left | 1 | 34306861835 | Shop at ECS Tuning | ||||||
| 14 | Bracket, brake hose, outer right | 1 | 34306861836 | Shop at ECS Tuning | ||||||
| 15 | Hex bolt | M6X12-10.9-MK- | 4 | 34116868785 | Shop at ECS Tuning | |||||
