Brake pipe, front for BMW 5 Series G61 Touring 520d (2023)

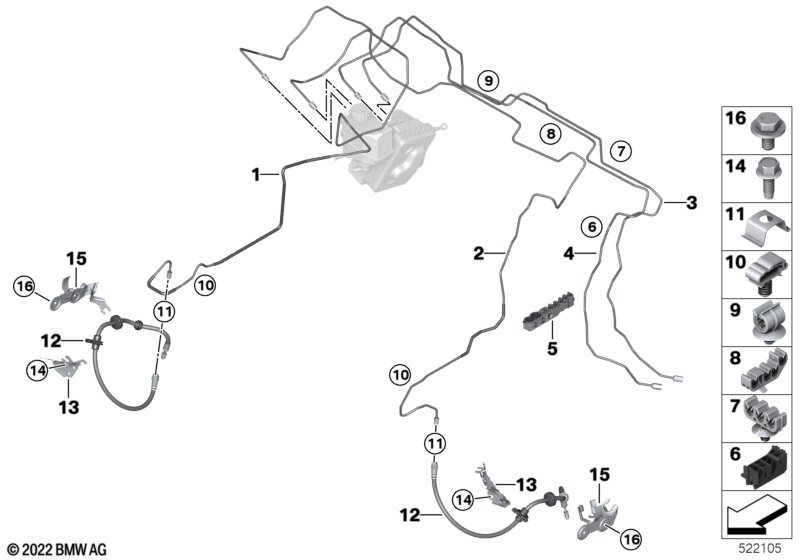

This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the 5 Series G61 Touring 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | 1 | 02/2025 | 34308840718 | Shop at ECS Tuning | |||||
| 02 | Pipe | 1 | 02/2025 | 34308840716 | Shop at ECS Tuning | |||||
| 03 | Pipe | 1 | 02/2025 | 34308840720 | Shop at ECS Tuning | |||||
| 04 | Pipe | 1 | 02/2025 | 34308840722 | Shop at ECS Tuning | |||||
| 05 | Clip | 1 | 07148842765 | Shop at ECS Tuning | ||||||
| 06 | Rubber grommet | 2 | 34308841207 | Shop at ECS Tuning | ||||||
| 07 | Wiring clip, triple | 1 | 34326871446 | Shop at ECS Tuning | ||||||
| 08 | Clip | 3 | 07148842766 | Shop at ECS Tuning | ||||||
| 09 | Clip | 2 | 34326871821 | Shop at ECS Tuning | ||||||
| 10 | Tubing support | 2 | 34521164653 | $0.23 | Shop at ECS Tuning | |||||
| 11 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 12 | Brake hose front | 2 | 34106899089 | Shop at ECS Tuning | ||||||
| 13 | Holder brake hose left front | 1 | 34308834735 | Shop at ECS Tuning | ||||||
| 13 | Holder brake hose right front | 1 | 34308834736 | Shop at ECS Tuning | ||||||
| 14 | Screw self-tapping | M6X16MM | 4 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| 15 | Bracket, brake hose, outer left | 1 | 34306861835 | Shop at ECS Tuning | ||||||
| 15 | Bracket, brake hose, outer right | 1 | 34306861836 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt | M6X12-10.9-MK- | 4 | 34116868785 | Shop at ECS Tuning |
