Power brake for BMW 5 Series G60 Sedan 520i (2024)

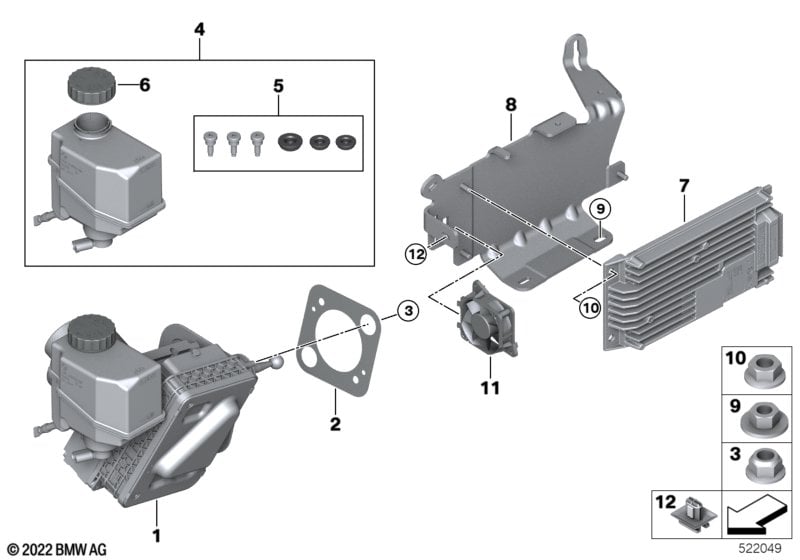

This Power brake technical drawing provides a detailed breakdown of the assembly for the 5 Series G60 Sedan 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | 1 | 34505B69D61 | Shop at ECS Tuning | ||||||
| 02 | Seal, brake booster | 1 | 34516893390 | Shop at ECS Tuning | ||||||
| 03 | Self-locking collar nut | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Repair kit, expansion tank | 1 | 34505A51323 | Shop at ECS Tuning | ||||||
| 05 | Behälterstopfen | 1 | 34505A51311 | Shop at ECS Tuning | ||||||
| 06 | Sealing cap, expansion tank | 1 | 34505A51314 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional and Highway assistant |
S5AUA=Yes S5AXA=Yes |
|||||||||
| 07 | Control unit MPAD | 1 | 11/2024 | 34505B60967 | Shop at ECS Tuning | |||||
| 07 | Control unit MPAD | 1 | 34505B6C405 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional and Highway assistant |
S5AUA=Yes S5AXA=No |
|||||||||
| 07 | Control unit MPAD | 1 | 11/2024 | 34505B60965 | Shop at ECS Tuning | |||||
| 07 | Control unit MPAD | 1 | 34505B6C403 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional or BMW Personal pilot |
S5AUA=Yes S5DXA=Yes |
|||||||||
| 08 | Holder | 1 | 66519500204 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 09 | Hex nut | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Fan | 1 | 07/2025 | 34505A26AA0 | Shop at ECS Tuning | |||||
| 12 | Plug-in connection bracket | 1 | 61139285769 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G60 Sedan 520i Power brake?
- This technical diagram illustrates the Power brake within the Brakes group for the 5 Series G60 Sedan 520i produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Power brake (Part #34505B69D61).
- Which models use the hardware listed in this Power brake?
- The hardware and components featured in the Power brake are specific to the 5 Series G60 Sedan 520i produced during 2024. These technical specifications ensure that parts like the Power brake (34505B69D61) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power brake assembly?
- Each item in the Power brake corresponds to the numbered list below the illustration. For the 5 Series G60 Sedan 520i, you can identify the Power brake by locating its position on the schematic, which then links to the official BMW part number 34505B69D61 for the Brakes section.
