Power brake for BMW 3 Series G21 Touring LCI M340iX (2025)

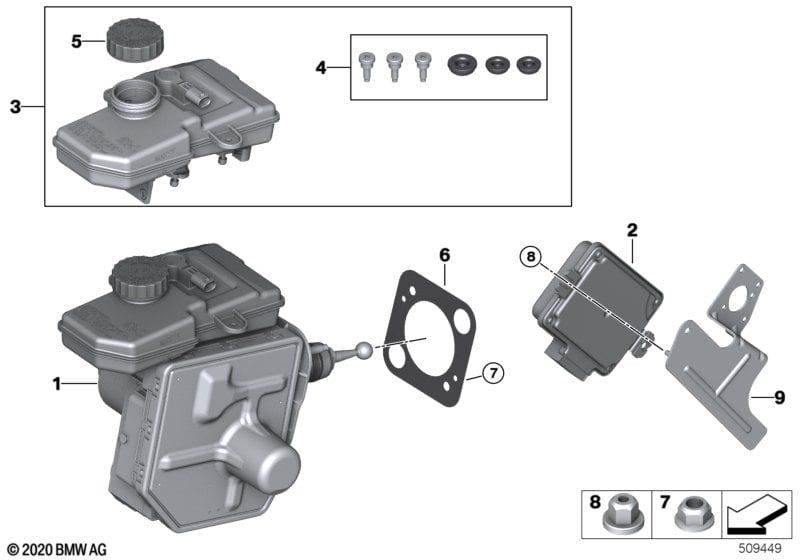

This Power brake technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring LCI M340iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power brake | 1 | 34515B3ED78 | Shop at ECS Tuning | ||||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 02 | Control unit for SAS | 1 | 34509500026 | Shop at ECS Tuning | ||||||
| 03 | Expansion tank | 1 | 34519504021 | Shop at ECS Tuning | ||||||
| 04 | Container plug | 1 | 34516891141 | Shop at ECS Tuning | ||||||
| 05 | Cover lid | 1 | 34321164039 | $4.60 | Shop at ECS Tuning | |||||
| 06 | Seal, brake booster | 1 | 34336864115 | Shop at ECS Tuning | ||||||
| 07 | Self-locking collar nut | M8-8-ZNS3 | 2 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Driving assistant professional |
S5AUA=Yes |
|||||||||
| 08 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 34506882544 | Shop at ECS Tuning | ||||||
