Rear brake / brake pad / wear sensor for BMW 5 Series G99 M5 Touring M5 (2025)

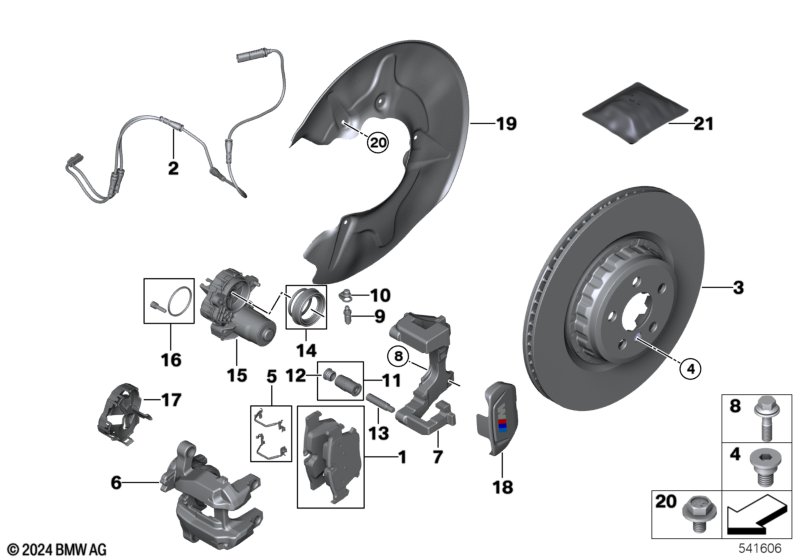

This Rear brake / brake pad / wear sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series G99 M5 Touring M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Carbon ceramic brake |
S2NKA=Yes |
|||||||||
| 01 | Repair kit, brake pads | 1 | 34207885509 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake |
S2NKA=No |
|||||||||
| 01 | Repair kit brake pads asbestos-free | 1 | 34208842966 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Repair kit return spring | 1 | 34208852762 | Shop at ECS Tuning | ||||||
| The following additional parts are also essential: - brake pad sensor - brake pad paste The following recommendation applies to vehicles more than 48 months old: - Replace retaining spring refer to Repair Manual! |
||||||||||
| 02 | Brake pad wear sensor rear | 1 | 34356770997 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake |
S2NKA=Yes |
|||||||||
| 03 | Brake disk, carbon/ceramic, left | 1 | 34207885513 | Shop at ECS Tuning | ||||||
| 03 | Brake disk, carbon/ceramic, right | 1 | 34207885514 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake |
S2NKA=No |
|||||||||
| 03 | Brake disc, ventilated, perforated, left | 1 | 34207885511 | Shop at ECS Tuning | ||||||
| 03 | Brake disc ventilated, perforated, right | 1 | 34207885512 | Shop at ECS Tuning | ||||||
| 04 | Inner hex bolt | M8X12 | 4 | 34111123072 | $1.32 | Shop at ECS Tuning | ||||
| 05 | Repair kit return spring | 1 | 34208852762 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake |
S2NKA=Yes |
|||||||||
| 06 | Brake calliper housing, Gold, left | 1 | 34207889037 | Shop at ECS Tuning | ||||||
| 06 | Brake calliper housing, Gold, right | 1 | 34207889038 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake and M Compound brake, red high-gloss |
S2NKA=No S3M5A=Yes |
|||||||||
| 06 | Bremssattelgehäuse Rot links | 1 | 34208843005 | Shop at ECS Tuning | ||||||
| 06 | Brake caliper housing red right | 1 | 34208843006 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake and M Compound brake, black high-gloss |
S2NKA=No S3M6A=Yes |
|||||||||
| 06 | Brake caliper housing Black Right | 1 | 34208843010 | Shop at ECS Tuning | ||||||
| 06 | Brake caliper housing Black Left | 1 | 34208843009 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake and M Compound brake, red high-gloss and M Compound brake, black high-gloss |
S2NKA=No S3M5A=No S3M6A=No |
|||||||||
| 06 | Brake caliper housing Blue Left | 1 | 34208843001 | Shop at ECS Tuning | ||||||
| 06 | Brake caliper housing Blue Right | 1 | 34208843002 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake |
S2NKA=Yes |
|||||||||
| 07 | Brake anchor plate, Gold, left | 1 | 34207889039 | NoS | Shop at ECS Tuning | |||||
| 07 | Brake anchor plate, Gold, right | 1 | 34207889040 | NoS | Shop at ECS Tuning | |||||
| For vehicles with M Carbon ceramic brake and M Compound brake, red high-gloss |
S2NKA=No S3M5A=Yes |
|||||||||
| 07 | Brake anchor plate, red, left | 1 | 34208843061 | Shop at ECS Tuning | ||||||
| 07 | Brake anchor plate, red, right | 1 | 34208843062 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake and M Compound brake, black high-gloss |
S2NKA=No S3M6A=Yes |
|||||||||
| 07 | Brake anchor plate Black Right | 1 | 34208843064 | Shop at ECS Tuning | ||||||
| 07 | Brake anchor plate Black Left | 1 | 34208843063 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake and M Compound brake, red high-gloss and M Compound brake, black high-gloss |
S2NKA=No S3M5A=No S3M6A=No |
|||||||||
| 07 | Brake anchor plate blue left | 1 | 34208843059 | Shop at ECS Tuning | ||||||
| 07 | Brake anchor plate blue right | 1 | 34208843060 | Shop at ECS Tuning | ||||||
| 08 | Torx screw with washer | M12X1,5X43 ZNS3 | 4 | 34106864424 | Shop at ECS Tuning | |||||
| 09 | Ventilation valve | M10X1 | 2 | 34116768018 | $6.60 | Shop at ECS Tuning | ||||
| 10 | Dust cap | 2 | 34111163435 | $4.20 | Shop at ECS Tuning | |||||
| 11 | Repair kit guide bush | 2 | 34216869617 | Shop at ECS Tuning | ||||||
| 12 | Protective plug | 2 | 34111154979 | $1.80 | Shop at ECS Tuning | |||||
| 13 | Guiding bolt | 4 | 34111157041 | $20.02 | Shop at ECS Tuning | |||||
| 14 | Repair set brake caliper | 2 | 34216769103 | $70.80 | Shop at ECS Tuning | |||||
| 15 | Repair kit EMF actuator left | 1 | 34208843107 | Shop at ECS Tuning | ||||||
| 15 | Repair kit EMF actuator right | 1 | 34208843108 | Shop at ECS Tuning | ||||||
| 16 | Repair kit O-ring | 2 | 34208846401 | Shop at ECS Tuning | ||||||
| 17 | Repair kit cable routing left | 1 | 34208843095 | Shop at ECS Tuning | ||||||
| 17 | Repair kit cable routing right | 1 | 34208843096 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake |
S2NKA=Yes |
|||||||||
| 18 | Repair kit, design trim panel, Gold | 1 | 34207885591 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake and M Compound brake, red high-gloss includes retaining spring and design trim panel |
S2NKA=No S3M5A=Yes |
|||||||||
| 18 | Repair kit, design trim pan, red | 1 | 34208843083 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake and M Compound brake, black high-gloss includes retaining spring and design trim panel |
S2NKA=No S3M6A=Yes |
|||||||||
| 18 | Repair kit Design trim panel, black | 1 | 34208843084 | Shop at ECS Tuning | ||||||
| For vehicles with M Carbon ceramic brake and M Compound brake, red high-gloss and M Compound brake, black high-gloss includes retaining spring and design trim panel |
S2NKA=No S3M5A=No S3M6A=No |
|||||||||
| 18 | Repair kit Design trim panel, blue | 1 | 34208843082 | Shop at ECS Tuning | ||||||
| 19 | Protection plate left | 1 | 34206899155 | Shop at ECS Tuning | ||||||
| 19 | Protection plate right | 1 | 34206899156 | Shop at ECS Tuning | ||||||
| 20 | Hex bolt | M6X12-10.9-MK- | 6 | 34116868785 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 21 | Brake pad paste | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 21 | Brake pad paste | 3 G | 2 | 83192180000 | Shop at ECS Tuning | |||||
