Front brake pad wear sensor for BMW 5 Series F10 LCI 530dX (2016)

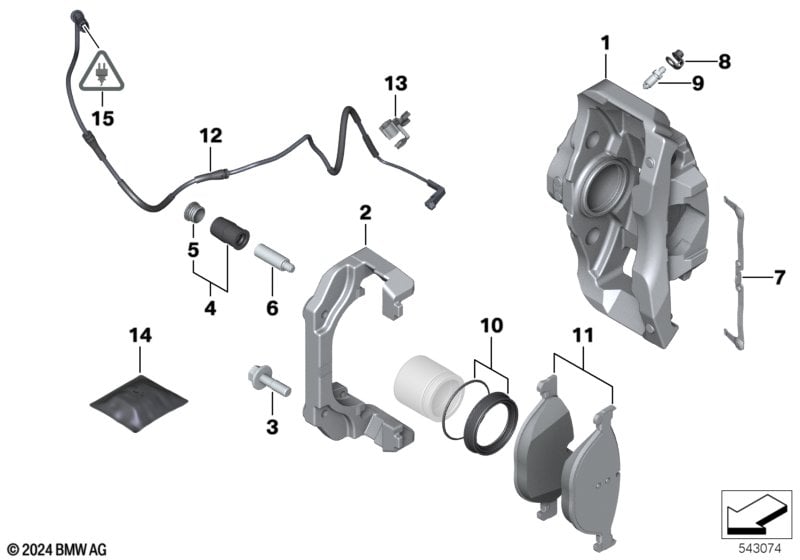

This Front brake pad wear sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 01 | Caliper housing left | 1 | 07/2014 | 34116786817 | $520.06 | Shop at ECS Tuning | ||||
| 01 | Caliper housing right | 1 | 07/2014 | 34116786818 | $520.06 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea or National version japan |
L802A=Yes L807A=Yes |
|||||||||
| 01 | Caliper housing left | 1 | 07/2014 | 34116792689 | Shop at ECS Tuning | |||||
| 01 | Caliper housing right | 1 | 07/2014 | 34116792690 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 02 | Calliper carrier | 2 | 07/2014 | 34116786820 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea or National version japan |
L802A=Yes L807A=Yes |
|||||||||
| 02 | Calliper carrier | 2 | 07/2014 | 34116792691 | Shop at ECS Tuning | |||||
| 03 | Torx screw with washer | M12X1,5X43 ZNS3 | 4 | 07/2014 | 34106864424 | Shop at ECS Tuning | ||||
| Note: Install on both sides | ||||||||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 04 | Repair kit guide bush | 2 | 07/2014 | 34116776935 | $25.37 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea or National version japan |
L802A=Yes L807A=Yes |
|||||||||
| 04 | Repair kit guide bush | 2 | 07/2014 | 34216869617 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 05 | Protective plug | 4 | 07/2014 | 34116776933 | $1.15 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea or National version japan |
L802A=Yes L807A=Yes |
|||||||||
| 05 | Protective plug | 4 | 07/2014 | 34111154979 | $1.80 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 06 | Guiding bolt | 4 | 07/2014 | 34116776934 | $7.78 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea or National version japan |
L802A=Yes L807A=Yes |
|||||||||
| 06 | Guiding bolt | 4 | 07/2014 | 34111157041 | $20.02 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 07 | Clip | 2 | 07/2014 | 34116786819 | $18.24 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea or National version japan |
L802A=Yes L807A=Yes |
|||||||||
| 07 | Clip | 2 | 07/2014 | 34116799386 | Shop at ECS Tuning | |||||
| 08 | Dust cap | 2 | 07/2014 | 34111163435 | $4.20 | Shop at ECS Tuning | ||||
| 09 | Ventilation valve | M10X1 | 2 | 07/2014 | 34116768018 | $6.60 | Shop at ECS Tuning | |||
| 10 | Repair set brake caliper | 2 | 07/2014 | 34111163647 | $25.42 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea |
L802A=No |
|||||||||
| 11 | Repair kit, brake pads asbestos-free | 1 | 07/2014 | 34116851269 | Shop at ECS Tuning | |||||
| The following additional parts are also essential: - brake pad sensor - brake pad paste The following recommendation applies to vehicles more than 48 months old: - Replace retaining spring refer to Repair Manual! |
||||||||||
| For vehicles with National version Korea or National version japan |
L802A=Yes L807A=Yes |
|||||||||
| 11 | Repair kit, brake pads asbestos-free | 1 | 07/2014 | 08/2022 | 34116850886 | Shop at ECS Tuning | ||||
| The following additional parts are also essential: - brake pad sensor - brake pad paste The following recommendation applies to vehicles more than 48 months old: - Replace retaining spring refer to Repair Manual! |
||||||||||
| 11 | Repair kit, brake pads | 1 | 07/2014 | 34118847063 | Shop at ECS Tuning | |||||
| The following additional parts are also essential: - brake pad sensor - brake pad paste The following recommendation applies to vehicles more than 48 months old: - Replace retaining spring refer to Repair Manual! |
||||||||||
| 12 | Brake pad wear sensor, front left | 1 | 07/2014 | 34356791958 | Shop at ECS Tuning | |||||
| 13 | Clip retainer | 1 | 07/2014 | 34356787325 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Brake pad paste | 3G | 2 | 07/2014 | 83192158851 | Shop at ECS Tuning | ||||
