Rear brake / brake pad / wear sensor for BMW 2 Series F74 Gran Coupé 218 (2025)

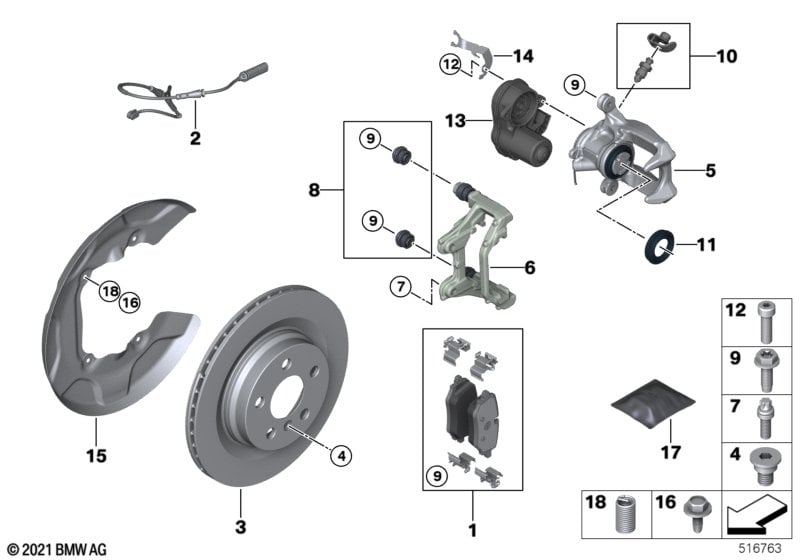

This Rear brake / brake pad / wear sensor technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M SPORT BRAKE, DARK BLUE METALLIC or M SPORT BRAKE, RED HIGH-GLOSS or M Compound brake, gray high-gloss |
S3M1A=Yes S3M2A=Yes S3M8A=Yes |
||||||||
| For vehicles with M Compound brake, gray high-gloss |
S3M8A=Yes |
|||||||||
| 01 | Repair kit, brake pads asbestos-free | 1 | 34208843737 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT BRAKE, DARK BLUE METALLIC or M SPORT BRAKE, RED HIGH-GLOSS |
S3M1A=Yes S3M2A=Yes |
|||||||||
| 01 | Repair kit, brake pads asbestos-free | 1 | 07/2025 | 34208834998 | Shop at ECS Tuning | |||||
| In addition, the following parts are essential: - brake pad sensor - brake pad paste refer to Repair Manual! |
||||||||||
| 02 | Brake pad wear sensor, rear | 1 | 34356891105 | Shop at ECS Tuning | ||||||
| For vehicles with M Compound brake, gray high-gloss |
S3M8A=Yes |
|||||||||
| 03 | Brake disk | 330X20 | 2 | 34206891087 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT BRAKE, DARK BLUE METALLIC or M SPORT BRAKE, RED HIGH-GLOSS |
S3M1A=Yes S3M2A=Yes |
|||||||||
| 03 | Brake disk | 300X20 | 2 | 34206891086 | Shop at ECS Tuning | |||||
| The following additional parts are also essential: - brake pads - brake pad sensor - brake pad paste refer to Repair Manual! |
||||||||||
| 04 | Inner hex bolt | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| For vehicles with M SPORT BRAKE, DARK BLUE METALLIC |
S3M1A=Yes |
|||||||||
| 05 | Brake caliper housing left | 1 | 34208848857 | Shop at ECS Tuning | ||||||
| 05 | Brake caliper housing right | 1 | 34208848858 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT BRAKE, RED HIGH-GLOSS |
S3M2A=Yes |
|||||||||
| 05 | Brake caliper housing left | 1 | 34208848853 | Shop at ECS Tuning | ||||||
| 05 | Brake caliper housing right | 1 | 34208848854 | Shop at ECS Tuning | ||||||
| For vehicles with M Compound brake, gray high-gloss |
S3M8A=Yes |
|||||||||
| 05 | Brake caliper housing right | 1 | 34207888468 | Shop at ECS Tuning | ||||||
| 05 | Brake caliper housing left | 1 | 34207888467 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT BRAKE, DARK BLUE METALLIC |
S3M1A=Yes |
|||||||||
| 06 | Caliper carrier right | 1 | 34208848860 | NoS | Shop at ECS Tuning | |||||
| 06 | Caliper carrier left | 1 | 34208848859 | NoS | Shop at ECS Tuning | |||||
| For vehicles with M SPORT BRAKE, RED HIGH-GLOSS |
S3M2A=Yes |
|||||||||
| 06 | Caliper carrier left | 1 | 34208848855 | NoS | Shop at ECS Tuning | |||||
| 06 | Caliper carrier right | 1 | 34208848856 | NoS | Shop at ECS Tuning | |||||
| For vehicles with M Compound brake, gray high-gloss |
S3M8A=Yes |
|||||||||
| 06 | Caliper carrier right | 1 | 34207888470 | NoS | Shop at ECS Tuning | |||||
| 06 | Caliper carrier left | 1 | 34207888469 | NoS | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M12X1,5X33 | 4 | 34206867544 | Shop at ECS Tuning | |||||
| 08 | Repair kit bellows | 2 | 34216888077 | Shop at ECS Tuning | ||||||
| 09 | Hex bolt | M8X22 | 4 | 34206850560 | Shop at ECS Tuning | |||||
| 10 | Repair kit ventilation valve | 2 | 34116768188 | $6.52 | Shop at ECS Tuning | |||||
| For vehicles with M Compound brake, gray high-gloss |
S3M8A=Yes |
|||||||||
| 11 | Repair kit piston protective cap | 2 | 34208837178 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT BRAKE, DARK BLUE METALLIC or M SPORT BRAKE, RED HIGH-GLOSS |
S3M1A=Yes S3M2A=Yes |
|||||||||
| 11 | Repair kit piston protective cap | 2 | 34108837177 | Shop at ECS Tuning | ||||||
| 12 | Screw for actuator | M6X17 | 4 | 34208844539 | Shop at ECS Tuning | |||||
| 13 | Actuator left | 1 | 34208837125 | Shop at ECS Tuning | ||||||
| 13 | Actuator right | 1 | 34208837126 | Shop at ECS Tuning | ||||||
| For vehicles with M Compound brake, gray high-gloss |
S3M8A=Yes |
|||||||||
| 14 | Repair kit for wiring loom, left | 1 | 34208837123 | Shop at ECS Tuning | ||||||
| 14 | Repair kit for wiring loom, right | 1 | 34208837124 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT BRAKE, DARK BLUE METALLIC or M SPORT BRAKE, RED HIGH-GLOSS |
S3M1A=Yes S3M2A=Yes |
|||||||||
| 14 | Repair kit for wiring loom, left | 1 | 34208837121 | Shop at ECS Tuning | ||||||
| 14 | Repair kit for wiring loom, right | 1 | 34208837122 | Shop at ECS Tuning | ||||||
| For vehicles with M Compound brake, gray high-gloss |
S3M8A=Yes |
|||||||||
| 15 | Protection plate | 2 | 34206892750 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT BRAKE, DARK BLUE METALLIC or M SPORT BRAKE, RED HIGH-GLOSS |
S3M1A=Yes S3M2A=Yes |
|||||||||
| 15 | Protection plate | 2 | 34206892749 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt | M6X16-U2-10.9-Z | 8 | 34206858087 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 17 | Brake pad paste | 3 G | 2 | 83192180000 | Shop at ECS Tuning | |||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 17 | Brake pad paste | 3G | 2 | 83192158851 | Shop at ECS Tuning | |||||
| 18 | Heli-Coil threaded insert | M6 | 1 | 07146958586 | $3.08 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
