Brake pipe, front for BMW 2 Series F78 Gran Coupé 225L (2025)

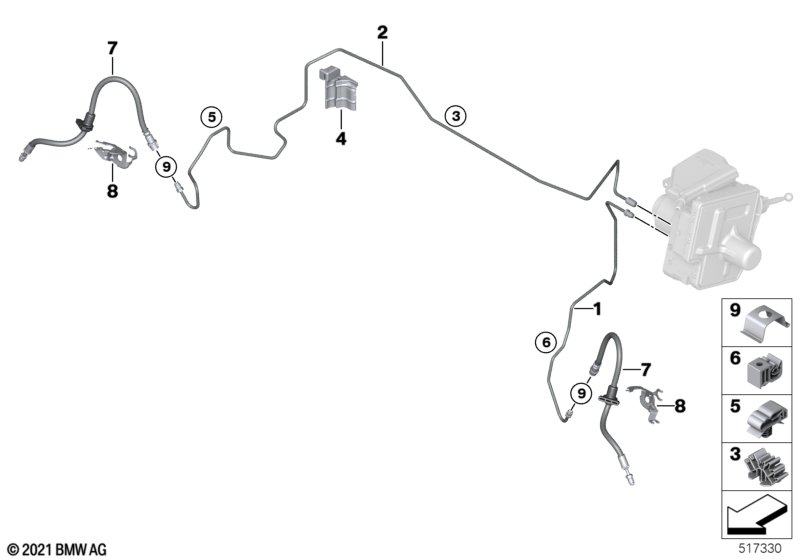

This Brake pipe, front technical drawing provides a detailed breakdown of the assembly for the 2 Series F78 Gran Coupé 225L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | 1 | 34308846589 | NoS | Shop at ECS Tuning | |||||
| 02 | Pipe | 1 | 34308846588 | NoS | Shop at ECS Tuning | |||||
| 03 | Wiring clip, 5-clamp | 2 | 34306858580 | Shop at ECS Tuning | ||||||
| 04 | Brake pipe bracket | 1 | 34306855949 | Shop at ECS Tuning | ||||||
| 05 | Line clip | 1 | 07148851872 | Shop at ECS Tuning | ||||||
| 06 | Line clip | 1 | 07148851872 | Shop at ECS Tuning | ||||||
| 07 | Brake hose | 2 | 34308831105 | Shop at ECS Tuning | ||||||
| 08 | Bracket for brake hose, front left | 1 | 34306854967 | Shop at ECS Tuning | ||||||
| 08 | Bracket for brake hose, front right | 1 | 34306854968 | Shop at ECS Tuning | ||||||
| 09 | Clip | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 10 | Not offered by BMW | X | 84210300311 | ENDED | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F78 Gran Coupé 225L Brake pipe, front?
- This technical diagram illustrates the Brake pipe, front within the Brakes group for the 2 Series F78 Gran Coupé 225L produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #34308846589).
- Which models use the hardware listed in this Brake pipe, front?
- The hardware and components featured in the Brake pipe, front are specific to the 2 Series F78 Gran Coupé 225L produced during 2025. These technical specifications ensure that parts like the Pipe (34308846589) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Brake pipe, front assembly?
- Each item in the Brake pipe, front corresponds to the numbered list below the illustration. For the 2 Series F78 Gran Coupé 225L, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 34308846589 for the Brakes section.
