Pedals/stop light switch for BMW 3 Series E21 320 (1979)

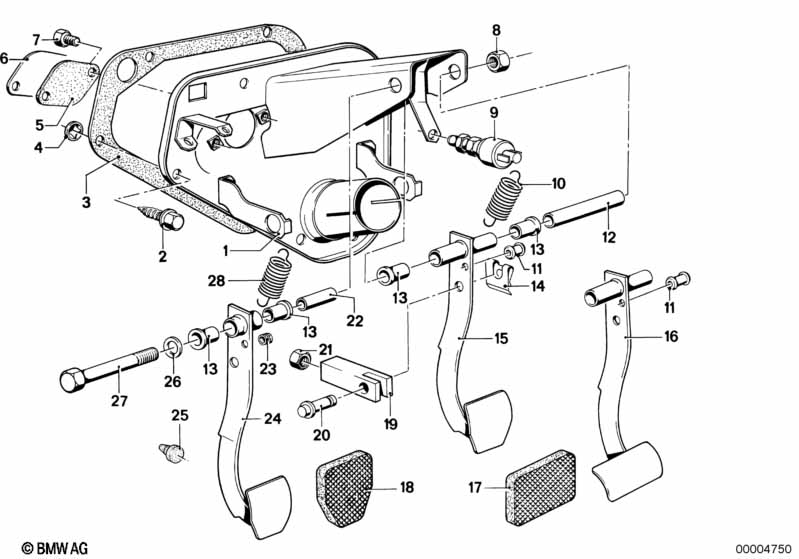

This Pedals/stop light switch technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 35111117717 | $74.77 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex head screw | B6,3X19 | 6 | 35111150944 | $3.40 | ENDED | Shop at ECS Tuning | |||
| 03 | Gasket | 1 | 35111114452 | ENDED | Shop at ECS Tuning | |||||
| 04 | Nut | 6 | 51481865415 | ENDED | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Stop light switch | 1 | 61311368786 | $38.77 | Shop at ECS Tuning | |||||
| 10 | Spring | 1 | 35311110259 | $6.63 | ENDED | Shop at ECS Tuning | ||||
| 11 | Grommet | 1 | 35211120897 | ENDED | Shop at ECS Tuning | |||||
| 12 | Spacer sleeve | 1 | 35211104621 | $2.75 | ENDED | Shop at ECS Tuning | ||||
| 13 | Bushing | D=18,1MM | 4 | 35211109541 | $1.84 | Shop at ECS Tuning | ||||
| 14 | Clamp | 1 | 34331120538 | $0.60 | Shop at ECS Tuning | |||||
| 15 | Brake pedal | 1 | 35211114448 | $17.27 | ENDED | Shop at ECS Tuning | ||||
| 18 | Rubber pad | 2 | 35211108634 | $4.07 | Shop at ECS Tuning | |||||
| 19 | Forkhead | 1 | 34311112608 | $4.30 | Shop at ECS Tuning | |||||
| 20 | Pin | 1 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 21 | Hex nut | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 22 | Spacer sleeve | 1 | 35214045708 | $2.82 | Shop at ECS Tuning | |||||
| 23 | Grommet | 1 | 35311113725 | $0.72 | Shop at ECS Tuning | |||||
| 24 | Clutch pedal | 1 | 35311116848 | $17.27 | ENDED | Shop at ECS Tuning | ||||
| 25 | Stopper | 1 | 35412458002 | ENDED | Shop at ECS Tuning | |||||
| 26 | Washer | 10-200 HV-ZNNIV | 1 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 27 | Hex bolt | M10X145 | 1 | 07119912735 | ENDED | Shop at ECS Tuning | ||||
| 28 | Tension spring | 1 | 35211103906 | $2.43 | ENDED | Shop at ECS Tuning |
