Pedals/stop light switch for BMW 6 Series E24 633CSi (1979)

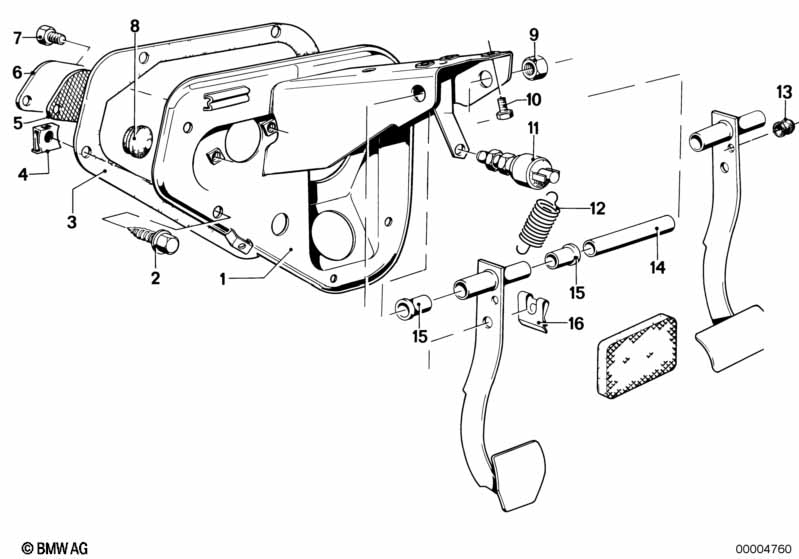

This Pedals/stop light switch technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex head screw | B6,3X19 | 6 | 09/1982 | 35111150944 | $3.40 | ENDED | Shop at ECS Tuning | ||
| 03 | Gasket | 1 | 09/1982 | 35111116470 | ENDED | Shop at ECS Tuning | ||||
| 04 | Body nut | 6 | 09/1982 | 35111151542 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket | 1 | 09/1982 | 35111117687 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering plate | 1 | 09/1982 | 35111117557 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M8X16-Z3 | 2 | 09/1982 | 07119915066 | $0.62 | Shop at ECS Tuning | |||
| 08 | Plug | D=26MM | 1 | 09/1982 | 61131354345 | ENDED | Shop at ECS Tuning | |||
| 09 | Self-locking hex nut | M10 | 2 | 09/1982 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 10 | Hex bolt with washer | M8X20 | 1 | 09/1982 | 35111102135 | $0.76 | ENDED | Shop at ECS Tuning | ||
| 11 | Stop light switch | 1 | 09/1982 | 61311368786 | $38.77 | Shop at ECS Tuning | ||||
| 12 | Tension spring | 1 | 09/1982 | 35211103906 | $2.43 | ENDED | Shop at ECS Tuning | |||
| 13 | Grommet | 1 | 09/1982 | 35211120897 | ENDED | Shop at ECS Tuning | ||||
| 14 | Spacer sleeve | 1 | 09/1982 | 35211104621 | $2.75 | ENDED | Shop at ECS Tuning | |||
| 15 | Bushing | D=18,1MM | 2 | 09/1982 | 35211109541 | $1.84 | Shop at ECS Tuning | |||
| 16 | Clamp | 1 | 09/1982 | 34331120538 | $0.60 | Shop at ECS Tuning |
