Pedal for BMW 6 Series E24 630CSi (1977)

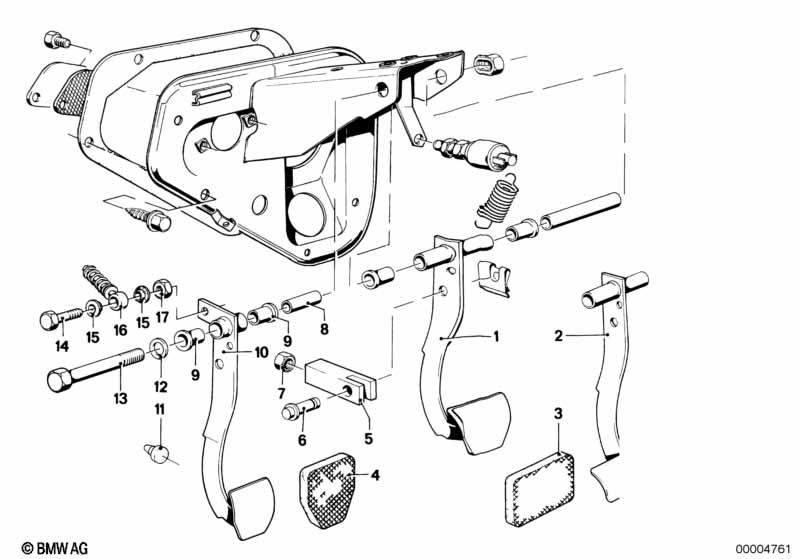

This Pedal technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 630CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake pedal | 1 | 09/1982 | 35211119039 | $32.71 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Bushing | D=18,1MM | 2 | 09/1982 | 35211109541 | $1.84 | Shop at ECS Tuning | |||
| 04 | Rubber pad | 2 | 09/1982 | 35211108634 | $4.07 | Shop at ECS Tuning | ||||
| 05 | Forkhead | 1 | 09/1982 | 34331106661 | $6.42 | Shop at ECS Tuning | ||||
| 06 | Pin | 1 | 09/1982 | 35211110925 | $1.44 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M10-8-ZNS | 1 | 09/1982 | 07119915558 | $0.88 | Shop at ECS Tuning | |||
| 08 | Spacer sleeve | 1 | 09/1982 | 35214045708 | $2.82 | Shop at ECS Tuning | ||||
| 09 | Bushing | D=18,1MM | 2 | 09/1982 | 35211109541 | $1.84 | Shop at ECS Tuning | |||
| 10 | Clutch pedal | 1 | 09/1981 | 35311114693 | $31.81 | ENDED | Shop at ECS Tuning | |||
| 11 | Stopper | 1 | 09/1982 | 35412458002 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | 10-200 HV-ZNNIV | 1 | 09/1982 | 07119904168 | $8.35 | Shop at ECS Tuning | |||
| 13 | Hex bolt | M10X145 | 1 | 09/1982 | 07119912735 | ENDED | Shop at ECS Tuning | |||
| 14 | Fit bolt | 1 | 09/1981 | 21521102721 | $3.62 | Shop at ECS Tuning | ||||
| 15 | Bushing | 2 | 09/1981 | 35314640116 | $1.20 | Shop at ECS Tuning | ||||
| 16 | Spring | 1 | 09/1981 | 35311111504 | $41.36 | ENDED | Shop at ECS Tuning | |||
| 17 | Self-locking hex nut | M10 | 1 | 09/1981 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
