Pedals-supporting bracket for BMW 7 Series E23 735i (1989)

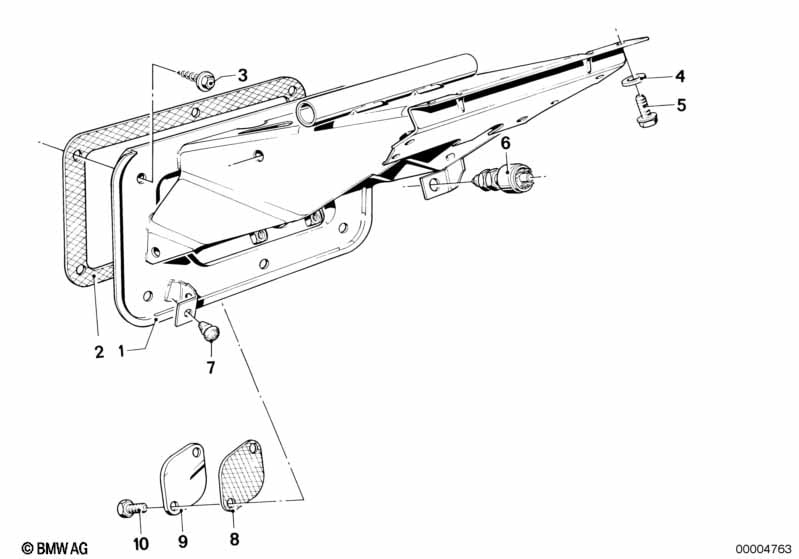

This Pedals-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 01/1981 | 35111152699 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket | 1 | 35111117381 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex head screw | B6,3X19 | 6 | 35111150944 | $3.40 | ENDED | Shop at ECS Tuning | |||
| 04 | Washer | 2 | 35111118331 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X22-SB-Z4 | 2 | 07119915160 | ENDED | Shop at ECS Tuning | ||||
| 06 | Stop light switch | 1 | 61311368786 | $38.77 | Shop at ECS Tuning | |||||
| 07 | Stopper | 1 | 35412458002 | ENDED | Shop at ECS Tuning | |||||
| 08 | Gasket | 1 | 35111117687 | ENDED | Shop at ECS Tuning | |||||
| 09 | Covering plate | 1 | 35111117557 | $0.56 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M8X16-Z3 | 2 | 07119915066 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Pedals-supporting bracket?
- This technical diagram illustrates the Pedals-supporting bracket within the Pedals group for the 7 Series E23 735i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #35111152699).
- Which models use the hardware listed in this Pedals-supporting bracket?
- The hardware and components featured in the Pedals-supporting bracket are specific to the 7 Series E23 735i produced during 1989. These technical specifications ensure that parts like the Supporting bracket (35111152699) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pedals-supporting bracket assembly?
- Each item in the Pedals-supporting bracket corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 35111152699 for the Pedals section.
