Pedal for BMW 7 Series E23 728 (1979)

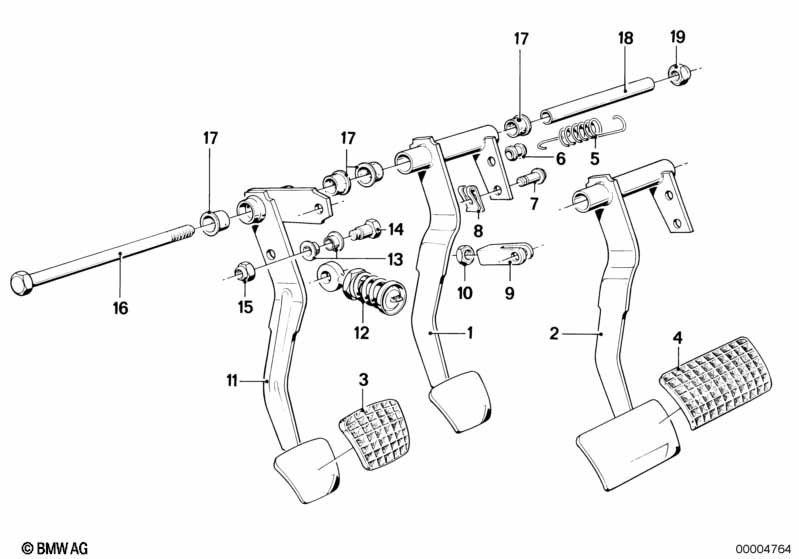

This Pedal technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Brake pedal | 1 | 35211117761 | $29.23 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rubber pad | 2 | 35311101598 | $3.73 | Shop at ECS Tuning | |||||
| 05 | Tension spring | 1 | 35211102383 | $3.80 | Shop at ECS Tuning | |||||
| 06 | Grommet | 1 | 35311113725 | $0.72 | Shop at ECS Tuning | |||||
| 07 | Pin | 1 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 08 | Clamp | 1 | 35411104248 | $0.82 | ENDED | Shop at ECS Tuning | ||||
| 09 | Forkhead | L=44MM | 1 | 35211154097 | $2.77 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 11 | Clutch pedal | 1 | 12/1980 | 35311151434 | $25.91 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Compression spring | 1 | 12/1980 | 35311151990 | $44.69 | Shop at ECS Tuning | ||||
| 12 | Spring | 1 | 12/1980 | 35311111504 | $41.36 | ENDED | Shop at ECS Tuning | |||
| 13 | Bushing | 2 | 12/1980 | 35314640116 | $1.20 | Shop at ECS Tuning | ||||
| 14 | Fit bolt | 1 | 12/1980 | 21521102721 | $3.62 | Shop at ECS Tuning | ||||
| 15 | Self-locking hex nut | M10 | 1 | 12/1980 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 16 | Hex bolt | M10X140 | 1 | 07119912733 | ENDED | Shop at ECS Tuning | ||||
| 17 | Bushing | D=18,1MM | 4 | 35211109541 | $1.84 | Shop at ECS Tuning | ||||
| 18 | Spacer sleeve | 1 | 35211116249 | $2.87 | ENDED | Shop at ECS Tuning | ||||
| 19 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
