Pedals/stop light switch for BMW 5 Series E28 528i (1988)

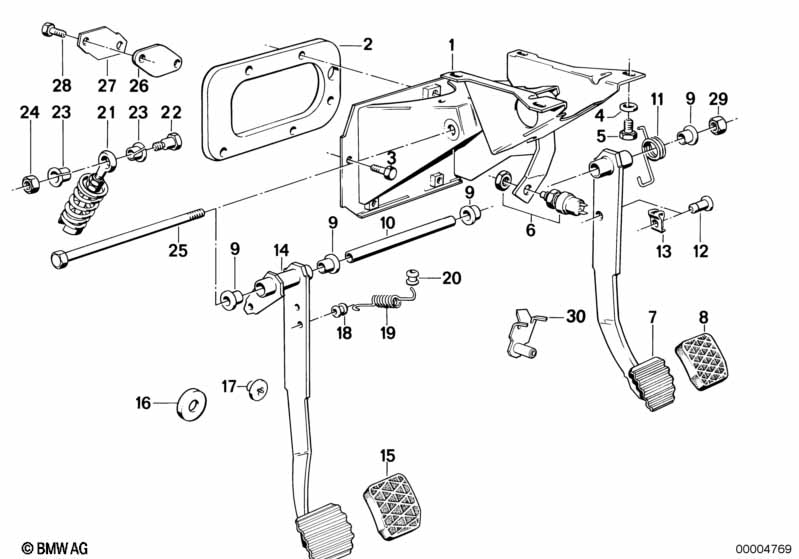

This Pedals/stop light switch technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket right | 1 | 35111156285 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket | 1 | 35112225299 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X20-Z3-1 | 6 | 07119915178 | $0.71 | Shop at ECS Tuning | ||||
| 04 | Washer | A8,4 | 4 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X22-SB-Z4 | 4 | 07119915160 | ENDED | Shop at ECS Tuning | ||||
| 06 | Stop light switch | 1 | 61311368786 | $38.77 | Shop at ECS Tuning | |||||
| 08 | Rubber pad | B=108MM | 1 | 35211113906 | $14.86 | Shop at ECS Tuning | ||||
| 09 | Bushing | D=18,1MM | 4 | 35211109541 | $1.84 | Shop at ECS Tuning | ||||
| 10 | Spacer tube | 1 | 35211150693 | ENDED | Shop at ECS Tuning | |||||
| 11 | Retainer spring | 1 | 35211154762 | ENDED | Shop at ECS Tuning | |||||
| 13 | Clamp | 1 | 34331120538 | $0.60 | Shop at ECS Tuning | |||||
| 24 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 25 | Hex bolt | M10X150 | 1 | 07119904677 | $3.82 | Shop at ECS Tuning | ||||
| 29 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 30 | Pin | 1 | 35211156302 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528i Pedals/stop light switch?
- This technical diagram illustrates the Pedals/stop light switch within the Pedals group for the 5 Series E28 528i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Bracket right (Part #35111156285).
- Which models use the hardware listed in this Pedals/stop light switch?
- The hardware and components featured in the Pedals/stop light switch are specific to the 5 Series E28 528i produced during 1988. These technical specifications ensure that parts like the Bracket right (35111156285) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pedals/stop light switch assembly?
- Each item in the Pedals/stop light switch corresponds to the numbered list below the illustration. For the 5 Series E28 528i, you can identify the Bracket right by locating its position on the schematic, which then links to the official BMW part number 35111156285 for the Pedals section.
