Pedals/stop light switch for BMW 6 Series E24 M6 (1988)

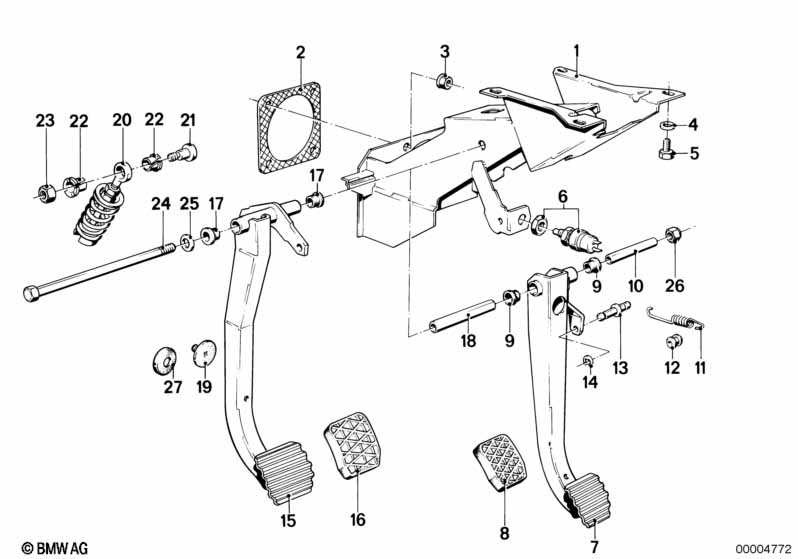

This Pedals/stop light switch technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 09/1982 | 35111152480 | $39.70 | Shop at ECS Tuning | ||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 01 | Supporting bracket | 1 | 09/1982 | 35111156816 | $41.27 | ENDED | Shop at ECS Tuning | |||
| 01 | Supporting bracket | 1 | 09/1982 | 35111152480 | $39.70 | Shop at ECS Tuning | ||||
| 02 | Gasket | 1 | 09/1982 | 35111150370 | $0.95 | Shop at ECS Tuning | ||||
| 03 | Self-locking collar nut | M8-8-ZNS3 | 4 | 09/1982 | 04/1989 | 07119904295 | $0.36 | Shop at ECS Tuning | ||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 4 | 09/1982 | 07119905374 | Shop at ECS Tuning | ||||
| 04 | Washer | A8,4 | 4 | 09/1982 | 24111690120 | $0.42 | Shop at ECS Tuning | |||
| 05 | Hex bolt with washer | M8X22-SB-Z4 | 4 | 09/1982 | 07119915160 | ENDED | Shop at ECS Tuning | |||
| 06 | Stop light switch | 2-POLIG | 1 | 09/1986 | 06/1993 | 61318360420 | $32.07 | Shop at ECS Tuning | ||
| 07 | Brake pedal | 1 | 35211158522 | $17.87 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bushing | 2 | 35211158290 | $1.52 | Shop at ECS Tuning | |||||
| 08 | Rubber pad | 1 | 09/1982 | 35211108634 | $4.07 | Shop at ECS Tuning | ||||
| 09 | Bushing | D=18,1MM | 2 | 09/1982 | 04/1989 | 35211109541 | $1.84 | Shop at ECS Tuning | ||
| 10 | Spacer sleeve | 14 X1,8 X70,5MM | 1 | 09/1982 | 35211150346 | $2.58 | ENDED | Shop at ECS Tuning | ||
| 11 | Tension spring | 1 | 09/1982 | 35211152371 | $11.53 | Shop at ECS Tuning | ||||
| 12 | Grommet | D=7,5MM | 1 | 09/1982 | 35411113728 | $0.57 | Shop at ECS Tuning | |||
| 13 | Pin | 1 | 09/1982 | 34311152270 | $2.07 | Shop at ECS Tuning | ||||
| 14 | Clamp | 1 | 09/1982 | 34331120538 | $0.60 | Shop at ECS Tuning | ||||
| 15 | Clutch pedal | 1 | 35311154739 | $20.84 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bushing | 2 | 35211158290 | $1.52 | Shop at ECS Tuning | |||||
| 16 | Rubber pad | 1 | 09/1982 | 35211108634 | $4.07 | Shop at ECS Tuning | ||||
| 17 | Bushing | D=18,1MM | 2 | 09/1982 | 35211109541 | $1.84 | Shop at ECS Tuning | |||
| 18 | Spacer sleeve | L=86,5MM | 1 | 09/1982 | 35311154734 | $2.20 | Shop at ECS Tuning | |||
| 19 | Stopper | 1 | 09/1982 | 35311152459 | $0.38 | Shop at ECS Tuning | ||||
| 20 | Compression spring | 1 | 09/1982 | 35311152540 | $21.62 | Shop at ECS Tuning | ||||
| 21 | Fit bolt | 1 | 09/1982 | 35311150407 | $23.76 | Shop at ECS Tuning | ||||
| 22 | Bushing | 2 | 09/1982 | 21521150345 | $9.17 | Shop at ECS Tuning | ||||
| 23 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 09/1982 | 07129906196 | $1.60 | Shop at ECS Tuning | |||
| 24 | Hex bolt | M10X175 | 1 | 09/1982 | 07119912721 | ENDED | Shop at ECS Tuning | |||
| 25 | Washer | 10-200 HV-ZNNIV | 1 | 09/1982 | 07119904168 | $8.35 | Shop at ECS Tuning | |||
| 26 | Self-locking hex nut | M10 | 1 | 09/1982 | 07129964672 | $0.36 | Shop at ECS Tuning | |||
| 27 | Cap | 1 | 09/1982 | 35311153896 | $0.70 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 M6 Pedals/stop light switch?
- This technical diagram illustrates the Pedals/stop light switch within the Pedals group for the 6 Series E24 M6 produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket (Part #35111152480).
- Which models use the hardware listed in this Pedals/stop light switch?
- The hardware and components featured in the Pedals/stop light switch are specific to the 6 Series E24 M6 produced during 1988. These technical specifications ensure that parts like the Supporting bracket (35111152480) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pedals/stop light switch assembly?
- Each item in the Pedals/stop light switch corresponds to the numbered list below the illustration. For the 6 Series E24 M6, you can identify the Supporting bracket by locating its position on the schematic, which then links to the official BMW part number 35111152480 for the Pedals section.
