Pedals/stop light switch for BMW 7 Series E32 730i (1994)

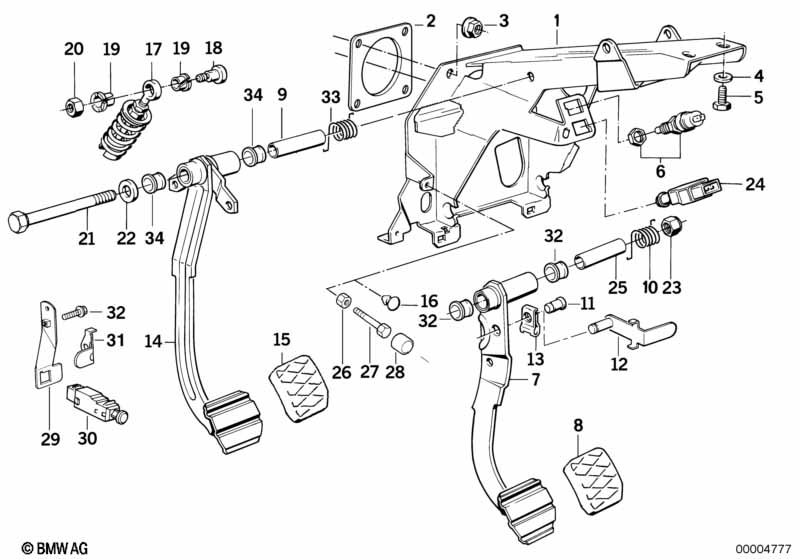

This Pedals/stop light switch technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket, foot controls | 1 | 09/1991 | 35111159647 | $43.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket | 1 | 35111150370 | $0.95 | Shop at ECS Tuning | |||||
| 03 | Self-locking collar nut | M8-8-ZNS3 | 4 | 07/2007 | 07119904295 | $0.36 | Shop at ECS Tuning | |||
| 03 | Self-locking collar nut | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X20-Z3-1 | 5 | 07119915178 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Brake lever | 1 | 35211161067 | $31.48 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rubber pad | 1 | 35211160422 | $4.47 | Shop at ECS Tuning | |||||
| 12 | Pin | 1 | 09/1989 | 34331161802 | $4.55 | ENDED | Shop at ECS Tuning | |||
| 13 | Fuse | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Clutch lever | 1 | 35311155691 | $32.95 | Shop at ECS Tuning | |||||
| 15 | Rubber pad | 1 | 35211108634 | $4.07 | Shop at ECS Tuning | |||||
| 16 | Clutch pedal stop buffer | 1 | 35311103849 | $0.73 | Shop at ECS Tuning | |||||
| 17 | Compression spring | 1 | 35311152540 | $21.62 | Shop at ECS Tuning | |||||
| 18 | Fit bolt | 1 | 35311150407 | $23.76 | Shop at ECS Tuning | |||||
| 19 | Bushing | 2 | 21521150345 | $9.17 | Shop at ECS Tuning | |||||
| 20 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 21 | Hex bolt | M10X160 | 1 | 07119912744 | $2.85 | Shop at ECS Tuning | ||||
| 22 | Washer | 10-200 HV-ZNNIV | 1 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| For vehicles with ASC |
=Yes |
|||||||||
| 23 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 24 | Stop light switch | 4-POLIG/MECH. | 1 | 61318360417 | $32.07 | Shop at ECS Tuning | ||||
| For vehicles with ASC |
=Yes |
|||||||||
| 24 | Stop light switch | 4-POLIG/ELO | 1 | 61318356527 | $144.29 | Shop at ECS Tuning | ||||
| 25 | Spacer sleeve | 14 X1,8 X70,5MM | 1 | 35211150346 | $2.58 | ENDED | Shop at ECS Tuning | |||
| 32 | Bushing | 2 | 35211158290 | $1.52 | Shop at ECS Tuning | |||||
| 34 | Bushing | 2 | 35211158290 | $1.52 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Pedals/stop light switch?
- This technical diagram illustrates the Pedals/stop light switch within the Pedals group for the 7 Series E32 730i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Supporting bracket, foot controls (Part #35111159647).
- Which models use the hardware listed in this Pedals/stop light switch?
- The hardware and components featured in the Pedals/stop light switch are specific to the 7 Series E32 730i produced during 1994. These technical specifications ensure that parts like the Supporting bracket, foot controls (35111159647) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pedals/stop light switch assembly?
- Each item in the Pedals/stop light switch corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Supporting bracket, foot controls by locating its position on the schematic, which then links to the official BMW part number 35111159647 for the Pedals section.
